Wednesday, August 26, 2020

Jupyter: JUlia PYThon and R

it's "ggplot2", not "ggplot", but it is ggplot()



Did you know that @projectJupyter's Jupyter Notebook (and JupyterLab) name came from combining 3 programming languages: JUlia, PYThon and R.

Readers of my blog do not need an introduction to Python. But what about the other 2?

Today we will talk about R. Actually, R and Python, on the Raspberry Pi.

R Origin

R traces its origins to the S statistical programming language, developed in the 1970s at Bell Labs by John M. Chambers. He is also the author of books such as Computational Methods for Data Analysis (1977) and Graphical Methods for Data Analysis (1983). R is an open source implementation of that statistical language. It is compatible with S but also has enhancements over the original.



A quick getting started guide is available here: https://support.rstudio.com/hc/en-us/sections/200271437-Getting-Started





Installing Python

As a recap, in case you don't have Python 3 and a few basic modules, the installation goes as follow (open a terminal window first):


pi@raspberrypi: $ sudo apt install python3 python3-dev build-essential

pi@raspberrypi: $ sudo pip3 install jedi pandas numpy


Installing R

Installing R is equally easy:



pi@raspberrypi: $ sudo apt install r-recommended



We also need to install a few development packages:


pi@raspberrypi: $ sudo apt install libffi-dev libcurl4-openssl-dev libxml2-dev


This will allow us to install many packages in R. Now that R is installed, we can start it:


pi@raspberrypi: $ R

Installing packages

Once inside R, we can install packages using install.packages('name') where name is the name of the package. For example, to install ggplot2 (to install tidyverse, simply replace ggplot2 with tidyverse):

> install.packages('ggplot2')


To load it:


> library(ggplot2)

And we can now use it. We will use the mpg dataset and plot displacement vs highway miles per gallon and set the color to:

>ggplot(mpg, aes(displ, hwy, colour=class))+

 geom_point()



Combining R and Python

We can go at this 2 ways, from Python call R, or from R call Python. Here, from R we will call Python.

First, we need to install reticulate (the package that interfaces with Python):

> install.packages('reticulate')

And load it:

> library(reticulate)

We can verify which python binary that reticulate is using:

> py_config()

 Then we can use it to execute some python code. For example, to import the os module and use os.listdir(), from R we do ($ works a bit in a similar fashion to Python's .):

> os <- import("os")
> os$listdir(".")

Or even enter a Python REPL:

> repl_python()
>>> import pandas as pd

>>>


Type exit to leave the Python REPL.

One more trick: Radian

we will now exit R (quit()) and install radian, a command line REPL for R that is fully aware of the reticulate and Python integration:

pi@raspberrypi: $ sudo pip3 install radian


pi@raspberrypi: $ radian

This is just like the R REPL, only better. And you can switch to python very quickly by typing ~:

r$> ~

As soon as the ~ is typed, radian enters the python mode by itself:

r$> reticulate::repl_python()

>>>

Hitting backspace at the beginning of the line switches back to the R REPL:

r$>


I'll cover more functionality in a future post.


Francois Dion

Monday, November 7, 2016

Something For Your Mind, Polymath Podcast episode 3

"Improving your communications and Entrepreneurship"

In this episode, , we will cover these two different topics. Specifically, we will talk about kinematic displays, improving your communications, coworking spaces, entrepreneurship, innovation and more. This episode will wrap up with a learn more section, on what is an entrepreneur.
"these are people that can't help but generate ideas all the time..."


A few selected links are on the episode web page, and includes a few items related to colors (some for all platforms, others are Linux only)





Something for your mind is available on

art·chiv.es
/'ärt,kīv/



Francois Dion
@f_dion

Thursday, October 6, 2016

Improving your communications: Professional Audio-Video Production on Linux

Pro AV on Linux

I'll be presenting on the subject of Professional Audio-Video Production on Linux, next week at TriLug.




From concept to finished product, it has never been easier to obtain professional results when it comes to audio-video production on Linux.

We will cover some of the hardware that should be part of your production suite, from microphones to jog wheels and highlight some of the top tools for animation, audio, broadcasting, effects, modeling, music, transcoding and video. We will also go beyond the usual suspects and introduce some tools that might not be typically used for AV production.
By the end of the presentation, you will have all the tools you need to improve the quality of your communications, for your personal enjoyment, your career, or your business.

When

Thursday, 13 October 2016 - 7:00pm to 9:00pm
Where
The Frontier, 800 Park Offices Drive, Durham, NC
Francois Dion
@f_dion

Sunday, September 25, 2016

Something for your mind: Polymath Podcast Episode 001

Two topics will be covered:

Chipmusic, limitations and creativity

Numfocus (Open code = better science)


The numfocus interview was recorded at PyData Carolinas 2016. There will be a future episode covering the keynotes, tutorials, talks and lightning talks later this year. This interview was really more about open source and less about PyData.

The episode concludes with Learn more, on Claude Shannon and Harry Nyquist.

Something for your mind is available on

art·chiv.es
/'ärt,kīv/



Francois Dion
@f_dion

Tuesday, July 28, 2015

Linux, not chmod, groups!

In english

I was reviewing my logs, and I was surprised to see that every week, hundreds of people were going to this page (even though it was posted well over 2 years ago):
http://raspberry-python.blogspot.com/2012/09/pas-chmod-groupes.html

This is great if you can read french, but if not... here's a translation.

Groups

The use of chmod to resolve permission issues appear on a regular basis on forums and in tutorials for Linux.

This is quite a risky proposition, particularly if you are very permissive (chmod 777 !!)

Or another option I've seen is to simply use sudo.

By simply mastering one thing, most of the time you can make this problem go away: using groups.

For example, if we have something like this:

fdion@raspberrypi ~ $ ls -al /dev/fb0
crw-rw---- 1 root video 29, 0 Dec 31 1969 /dev/fb0

Permissions on this file are defined as:
c, owner (root): read write, no exec, group (video): read write, no exec, and for everybody else, no access.

If I would like for my python script under my fdion account, or really any program that I run, to read and write the framebuffer (any program using the SDL would be a candidate), I only need to do:

usermod -a -G video fdion  and in this way I added fdion to the video group.

That is it. While on the topic of SDL, I would recommend doing at a minimum:

sudo usermod -a -G video fdion
sudo usermod -a -G audio fdion
sudo usermod -a -G input fdion

This way you'll be able to use the video, audio, mouse etc.

Francois Dion
@f_dion

Wednesday, May 13, 2015

SELF 2015 Keynote


South East Linux Fest 2015


For the past several years, South East Linux Fest has been one of the conference in the southeast US that I've looked forward to. Not just for your day to day Linux admin stuff, but for a wide gamut of talks on databases, operating system design, security, programming, history, so on and so forth.

In 2013, we started to see some Raspberry Pi related talks (see Alcyone And On And On - hope you get the musical reference), and in 2014 I was able to present about Python 3 in the browser (thanks to Brython).

And here comes SELF 2015. I was pleasantly surprised to find out that my proposal for 2015 was not only accepted, but selected as the Saturday keynote, at 9am.

SELF Keynote

Title: "Team Near Space Circus: Computing at 80,000 ft"

By Francois Dion

Description:
On April 21st 2015, Team Near Space Circus made history, sending a high altitude balloon (NSC-01) into near space. Aboard the vehicle, a computing cluster (a first for HAB flights) of 7 networked Raspberry Pi, 8 cameras and multiple sensors recorded 250GB of data, images and video.


This is the behind the scene story of this ground breaking flight.

When:
Saturday June 13th 2015, 9 AM.

P.S. This is a talk of general interest and will appeal to those who enjoy a good story.

When & Where


SouthEast|LinuxFest

June 12-14, 2015
Sheraton Charlotte Airport
Charlotte, NC


Francois Dion
@f_dion

Thursday, April 30, 2015

The computer network in space - Part 2


- You're flying! How?
- Python!
( https://xkcd.com/353/ )

Continued


Part one of this series of articles on Team Near Space Circus flight NSC-01 can be found  >here<. It covered the physical layout of the 7 Raspberry Pis, 8 cameras and power system. It left off as we were about to go into the details of the network topology itself.

A satellite or a bowl of spaghetti?

Plan A: 2 Pi in a Pod...


The initial plan was for 2 Raspberry Pi using a serial communication protocol. The Model A+ does not have an ethernet port. Of course a Raspberry Pi 2 has one, and is more powerful, but it also consumes a lot more power than the A+. Our battery pack would have had to be much larger if we went down that path, and that meant significantly heavier. We had a goal of 2Kg for the payload itself, and we were getting close, so serial it was...

Serial communication


DB25 (serial or parallel)
DB9 (serial)

Many early personal computers typically had two interfaces, either built in or available through an expansion card: a serial (either a DB9 or DB25 connector) and a parallel interface (either a DB25 or 36 pins Centronics connector, aka IEE1824). The parallel interface was typically used for printers (and great for DIY DACs with resistor ladders, but that's a story for another time), while the serial port was mostly used for modems or scientific equipment.

RS-232 was introduced in 1962, so it's been around for quite a while now. Many serial connections were actually TTL (5V), such as on the Digital Decwriter III, but it was quite easy to convert them to a +/- voltage range (and even more so since the mid 80s with ICs such as the MAX232). The initial purpose was to connect a DTE (Data Terminal Equipment), a fancy way of saying a computer, and a DCE (Data Communication or Circuit-terminating Equipment).

On a DB9 connector, the pins would be (DB9 male connector pictured):

RxD is Receive Data and TxD is Transmit Data. What if you need to connect two DTE together? You need a Null-Modem adapter or cable. The simplest Null-Modem circuit requires 3 wires (2 if you can guarantee the ground on each end to be the same):

GND(7) to GND(7), TxD(5) to RxD(4), RxD(4) to TxD(5)

Raspberry Pi Header


The Raspberry Pi doesn't have a DB9 or DB25 connector. But if you look at the 40 pin header, notice on the top row, the 4th and 5th pins:
Raspberry Pi Model A+ with pinout as overlay

TXD and RXD. It is a serial port, but it is *not* RS-232 compatible as far as voltage levels are concerned (a 1 is marked by a negative voltage in the range -3V to -15V, and a 0 by a positive voltage in the range +3V to +15V), as it is a TTL interface (a 1 is marked by a positive voltage, either 3V3 or 5V and a 0 is marked by 0V). But that is fine, we are only connecting to another Raspberry Pi.

The primary issue with this serial port is that the Raspbian operating system has a console (TTY) associated it. Meaning that you could connect this to a computer, with the right cable, and see the boot process and get a console prompt, and be able to type commands, as if you had a keyboard and monitor connected directly to the Raspberry Pi.

In our case, however, we want to use the port for something else, our own communication network, so we have to disable this feature. It was once a manual process, and I had written a script to do it, but...

Configuration


sudo raspi-config

The raspi-config now has an option under the Advanced Options selection to disable the serial port console, so we can use it directly:

Advanced -> Serial
Once we have reconfigured the serial port, we can quit raspi-config and reboot. For each compute node, beside disabling the serial port console, we also enabled on the advanced page the SPI and I2C options, and on the main page we configured the time zone, enabled the camera and expanded the filesystem. We also overclocked nodes 1-3 to 800 MHz while nodes 4-6 ran at 700 MHz (so we can measure the impact of overclocking).

Plan B: A Pi cluster

By using a pair of Raspberry Pi, the communication process is pretty straightforward. With two nodes, we can use SLIP or Point to Point Protocol (PPP). Initially, this was the thought for NSC-01 and we would not have to write the code for the network layer.

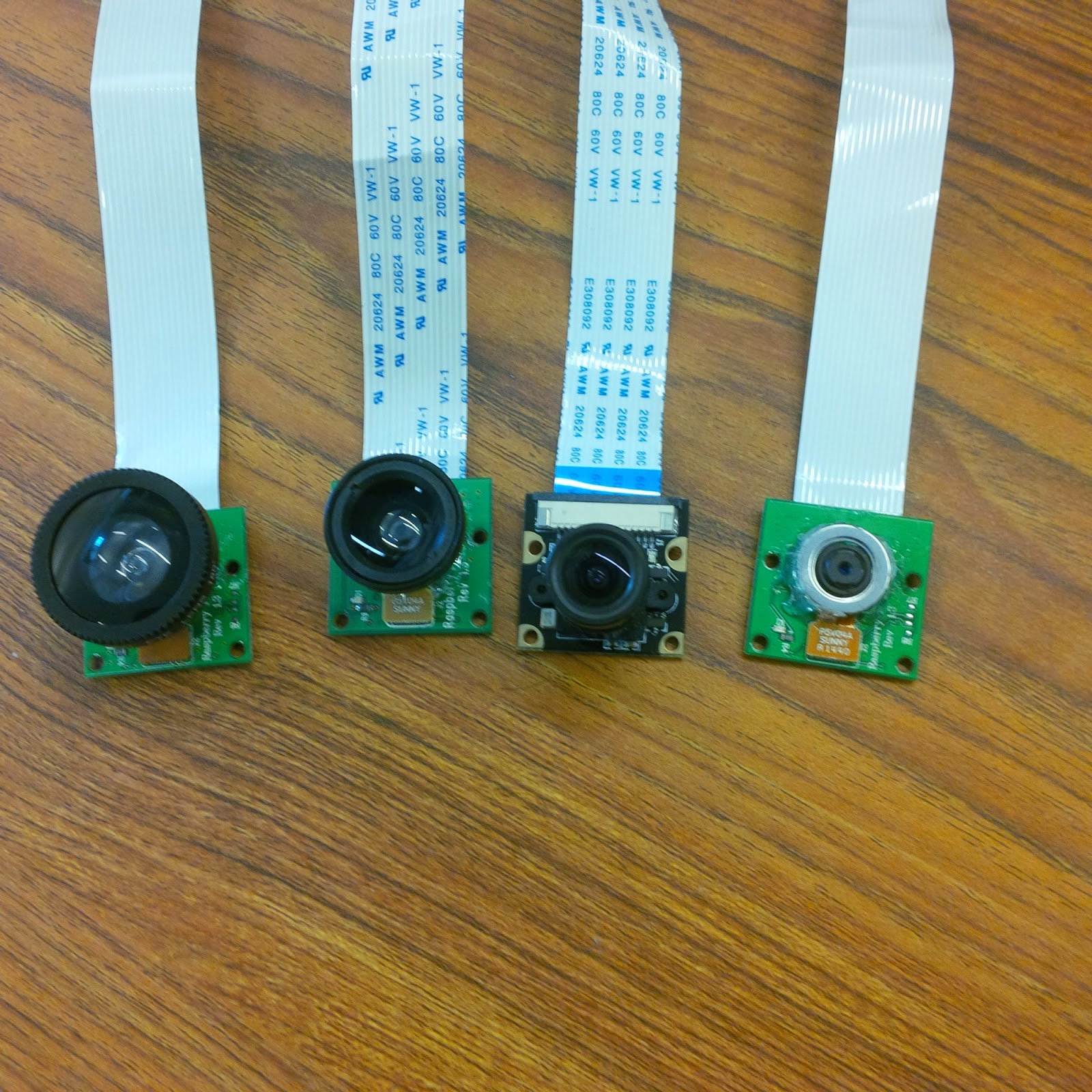

6 Raspberry Pi cameras
1 Infrared Raspberry Pi camera (pointing down)

But without a functioning camera switcher, the only option was to use one node per camera (each Raspberry Pi has 1 CSI camera connector, even thought the Broadcom chip supports 2 - most cell phones have a front and rear camera). With 7 CSI cameras in total, that meant 7 Raspberry Pi.

Time to dig in our bag of tricks...

Token Ring

4 Node token ring network architecture


As I was going through the options, I started thinking about good old IBM Token Ring (and FDDI). Conceptually, at least. I wasn't going to make something compatible with 802.5, but instead reuse the concept with the serial UART, transmit to receive from one node to the next.

Conceptually, a node is always listening to the serial port. Is this data for me? (if it's a broadcast or if it's addressed to me) If not or if a broadcast, I send it right away to the next node, and process it if it is addressed to me. So let's get into the details.

The diagram

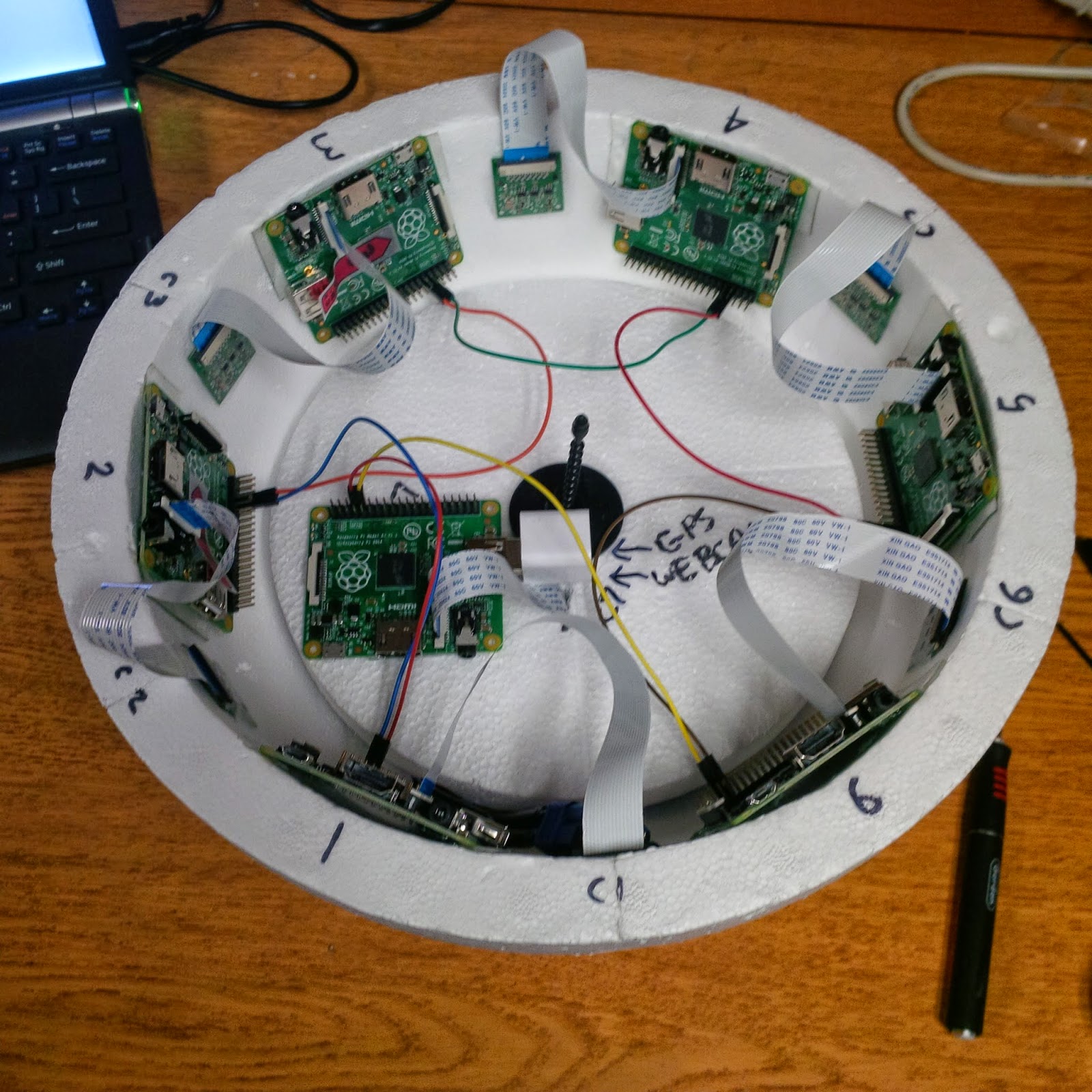

7 Raspberry Pi networked together
In the previous article, one of the pictures clearly showed 7 Raspberry Pi connected together inside the payload. I've included here a fritzing diagram to help in detailing what is going on here.

In the diagram above, I didn't have a Raspberry Pi model A+ for fritzing, so I used the closest thing for our purpose, a Raspberry Pi model B+. Both of them have a 40 pins GPIO header. First row at the top, from left to right has 5V, 5V, GND, TxD and RxD. We'll stop there for right now.

Here I've simply connected node 1 TxD to node 2 RxD (blue wire), node 2 TxD to node 3 RxD (pink), node 3 TxD to node 4 RxD (brown), node 4 TxD to node 5 RxD (cyan), node 5 TxD to node 6 RxD (orange), node 6 TxD to node 7 RxD (yellow) and finally node 7 TxD to node 1 RxD (green), in a nice circular (or ring) fashion.

The GND are not daisy chained from one Pi to the next, because they are all powered by the same source, through their microusb plugs.

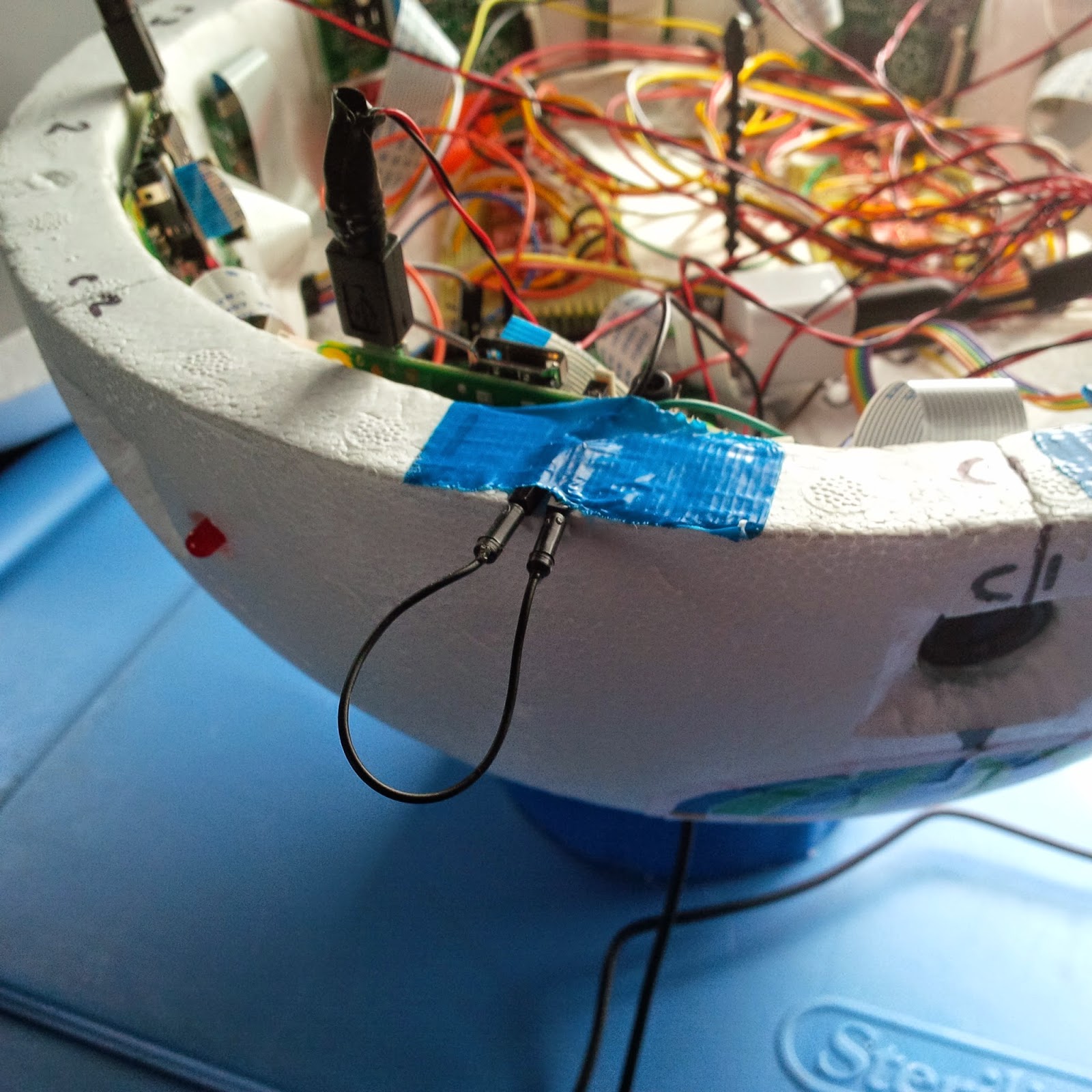

Initially, I tried to power the Pi directly from the 5V pin on the GPIO header, but the signal was decoding only partly. By further connecting the 3.3V (that was key, the UART operates at 3V3 so the HIGH signal was not detected reliably when powered with only 5V) and GND together, it made it more reliable, but also more complicated. I reverted back to powering all the 7 nodes using microusb (as detailed in the previous article).

Python


What's great about Raspbian is that not only do we have Python installed, but Python 2.x and 3.x are there, along with many things that are normally optional, such as pygame, pyserial, RPi.GPIO etc. Batteries are quite definitely included with Python on the Raspberry Pi.

Still, for the networking software, we did install two modules from pypi using pip3 (we are using Python 3), docopt and sh.

For the bulk of the development, I used a Raspberry Pi Model B+ connected to my laptop and to a second Raspberry Pi using the serial port and the network switch. That way my laptop could see both Raspberry Pi and I could push new versions of the software using scp.

I also had a "field" version, in case I needed to do last minute changes:

Raspberry Pi sidekick in sidecar configuration (DHCP server on laptop)

Docopt


docopt: helps you to define interface for your command-line app, and automatically generate a parser for it.

For example, in the case of the network controller, token.py, it accepted one argument, the node number. In the future, we'll probably derive the node number from a personality module on the GPIO header, but it was a simple solution that could be done in software, not adding any weight to the payload. The downside was having to keep track of all the microsd cards:

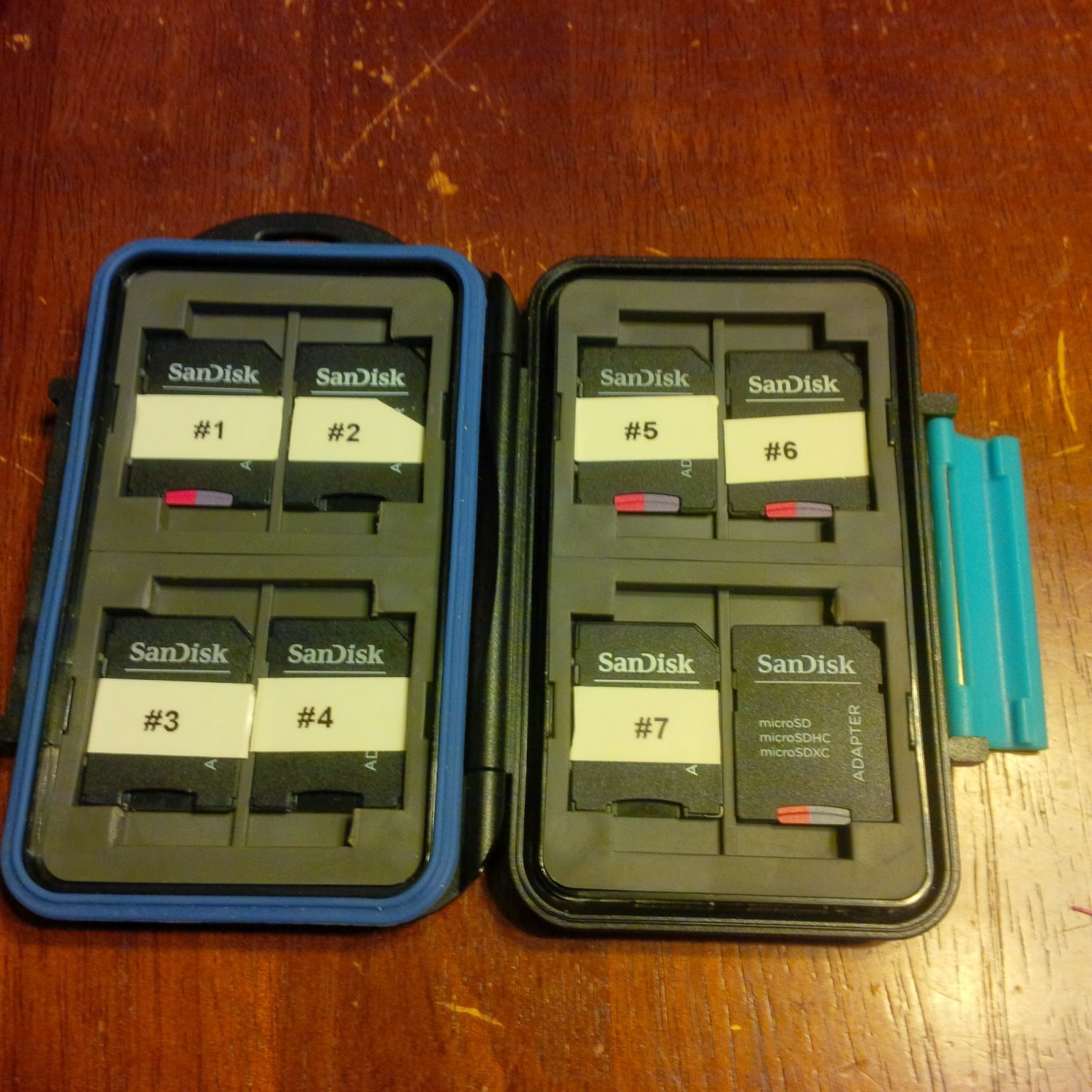

micro SD card transport - For nodes 1 to 7 plus 1 backup


And, so back to docopt, here is how it was used for token.py. At the top of the file, after the shebang line (so the script can be an executable), I included the docstring which defines the interface (lines 2 to 5), which is a required field <address>. This is a simple case, but as cases get more complicated, it really pays off to use docopt.

Then on line 14 I import the docopt module (I group imports alphabetically first by what's included, then a blank line, then again alphabetically I add the imports that have to be installed - just a convention):

1 :  #!/usr/bin/env python3
2 :  """
3 :
4 :  Usage: token.py <address>
5 :  """
6 :  from datetime import datetime
7 :  import logging
8 :  from logging.handlers import SysLogHandler
9 :  import RPi.GPIO as gpio
10:  import serial
11:  import subprocess
12:  from time import sleep, time
13:
14:  from docopt import docopt


I then conclude the script by passing the arguments that docopt figured out are there (and validated) in the docstring (__doc__), to the main function:

168:  if __name__ == "__main__":
169:    arguments = docopt(__doc__)
170:    main(arguments)
171:


And how does one use it in the code itself? In the body of the main function I do the following:

97 :
98 :  def main(args):
99 :      my_addr = int(args['<address>'])
100:




In case an air traveler wants to check our website...

SH

sh: is a full-fledged subprocess replacement for Python 2.6 - 3.4 that allows you to call any program as if it were a function:

`python from sh import ifconfig print ifconfig("eth0") `

Continuing with the code in token.py, you simply import what you need from the shell and sh transparently builds a function for you to call. In this case I needed access to date and rmmod:

1:  #!/usr/bin/env python3
2:  """
3:
4:  Usage: token.py <address>
5:  """
6:  from datetime import datetime
7:  import logging
8:  from logging.handlers import SysLogHandler
9:  import RPi.GPIO as gpio
10:  import serial
11:  import subprocess
12:  from time import sleep, time
13:
14:  from docopt import docopt
15:  from sh import date, rmmod


Then further down in the code I can call date() to call the actual date command from the OS so it is not only in the right format, but in the right timezone (there are other ways to do this, but sh was going to be used heavily for gathering stats, so it made sense to introduce it here):

154:      # synchronize time
155:      s = str(date())+' \n' # from the OS
156:      bin = bytes(s, "ascii")



Pyserial


So, how about accessing a serial port in Python? And are there things to keep in mind when using Python 3?

First thing first, we import serial (line 10). This module is already installed on the Raspberry Pi.

Then, within the body of the main function, we establish a serial connection (line 101). We specify the device that corresponds to the serial UART. This is /dev/ttyAMA0. We also specify the bitrate, expressed in bits per seconds (bps). 115200 is the fastest we can use with the default clock settings for the UART, and is what was used for the flight. As a reference, acoustic coupler modems worked at 300 bps...

We felt that at higher rates it might not give us as reliable a signal, but we will experience with faster rates on future flights (we only had time to do 1 flight within the Global Space Balloon Challenge window). Back in 2012, Gert Van Loo stated:

"The UART and the SPI can be driven by DMA so there is no SW limitation.The real maximum for all those interfaces is only set by the signal integrity.This is certainly the case for I2C as it has to use pull-up resistors to get the signals high again.I know the clocking is rather confused. I built the damn chip and I still have no idea how to control all the clocks.The clocking structure is very complex with a limited number of resources (PLL's) which are used for aplethora of things to drive. (A quick count shows 36! clocks being generated) There will be many cases where it is just not possible to give you ALL the frequencies you want."
And in fact, it is possible to get up to 921600 bps (8 times what we used) in a controlled environment, at the OS level In an environment full of RF, including a 10W 2M transmitter, with a python module, I'd be happy with 4 times (460800) or even twice (230400) our rate. If nothing else, it would drive our latency down some.

Wow, that was quite the detour, anyway, back to our establishing the serial connection. The last thing we specify  on line 101 is timeout=1. This is a 1 second timeout. We will be blocking on reads (line 113), but don't want to wait more than 1 second for the data.

In the original token ring world, a frame is defined in the following way:



A start delimiter, access control, frame control, destination address and source address, then the data, and finally a frame check sequence, end delimiter and frame status. I found this later, after I designed the frame for our system, and it is interesting that it is quite similar, in functionality, but implemented slightly differently.

In our case, the frames are small in size, they should never go above 1 second to transmit. And if they do, then we kick out that partial request and the balance of the request and we'll get the next one that is complete. So, we assume that if we get a full frame, the first byte is always first, and the frame always conclude with a newline (that way the ser.readline() returns before the 1 second timeout). We thus avoid the start delimiter (the end delimiter is newline).




The first byte for our protocol is the source address (1 byte = 254 addresses, 0 and 255 have special meaning). The second byte is the destination. On an 8 node setting (the default), this is a bitmask, and 255 (FF) is broadcast. On a "large" cluster,  this address is the individual node address, and 255 (FF) is still broadcast. You gain number of nodes, but loose directed broadcast (say, I want to send something to node 1, 2 and 6, I would use a destination of 9 in the 8 node mode, but in extended mode I have to send 3 individual frames). Then the status. This can be a static status (the packet gets back to the originator) or a counter status (each time a node processes the frame, it decreases the status) or a no status needed, where the nodes simple forward the original frame, but do not send a status. This is followed by a command. This allows for shorter data segments, since we just need the variable part of the command. Finally, the data, a variable number of bytes terminated by newline (\n).

As we get to higher speeds, I will definitely add the frame check sequence of the original token ring to our design.

10 :  import serial
11 :  import subprocess
12 :  from time import sleep, time
13 :
14 :  from docopt import docopt
15 :  from sh import date, rmmod
[...]
97:
98 :  def main(args):
99 :    my_addr = int(args['<address>'])
100:
101:    ser = serial.Serial('/dev/ttyAMA0', 115200, timeout=1)
[...]
111:    while not master:
112:      logger.debug("I am SLAVE") # Everywhere but node 1
113:      tokens = ser.readline()
114:
115:      if len(tokens) == 0:
116:        logger.debug("No token received in the past 1 second")


What about writes? As an example, in the case of the master controller, it starts its job by sending a KEEPALIVE frame. This is defined by a series of bytes on line 36. Source is 01 (master node), destination is 255 (FF) broadcast, status is FF (no response needed), then command 05 which is a keepalive. Data segment is of length 0 since \n is encountered immediately. This is the shortest well formed frame that can be sent. And that is what the master controller sends on line 152 using ser.write. As long as we keep everything as type bytes, the serial module works well in Python 3.

Pretty simple, overall (!). Well, considering this was all designed over the course of a handful of days. Python really helped.

[...]
36:  KEEPALIVE = b'\x01\xff\xff\x05\n' # keepalive packet
[...]
149:    # I am master, or I am taking over
150:    if my_addr == 1:
151:      sleep(15)
152:      ser.write(KEEPALIVE)
153:      sleep(1)

We will be creating a module for reuse out of the token.py application, so that other people can use a serial token ring setup themselves. This should be published to pypi. We'll also publish a demo implementation for a master/slave setup.

Deadman's Switch

I'm concluding this article here, as it is already quite long. But I invite you to read about a most interesting device, the Deadman's switch. This was used in our High Altitude Balloon, but it can be used in all kinds of scenarios. Read about it here: http://raspberry-python.blogspot.com/2015/04/deadmans-switch.html

And don't forget to check back regularly for more updates, such as part 3 of this series of articles (the data gathering aspects).

Francois Dion
@f_dion

Deadman's Switch

From Wikipedia:
"A dead man's switch (for other names, see alternative names) is a switch that is automatically operated if the human operator becomes incapacitated, such as through death, loss of consciousness or being bodily removed from control. Originally applied to switches on a vehicle or machine, it has since come to be used to describe other intangible uses like in computer software."

NSC-01

For Team Near Space Circus' participation in the Global Space Balloon Challenge with NSC-01, we wanted to make sure that once powered up, and enclosed, we would still have control of the computer cluster and the timeline of events, as to what would happen when. As we devised a network with 7 nodes (see part 1 and also part 2 of the computer network in near space) with a master controller and many slave nodes, we needed a way for the system to wait on a signal from us.

A plain old switch would do the trick of course. But what if the balloon took off and we forgot to flip the switch? Or somebody tripped and let the balloon go?

Martin DeWitt demoes why we need a deadman's switch

Then the master controller would have stayed in standby mode, sending keep alive frames to the other nodes and we would have had no images, no video, no gps data etc. Not good.


Tethered switch

If you've ever spent any time on a threadmill, no doubt you've encountered a tethered switch. Usually it's a magnetic plug, with a string, terminated by a clip. You clip it to yourself, so if you ever fall down/off the threadmill, you end up yanking the plug off the machine, and it stops right away.

Simple deadman's switch, just needing a string

Since the Raspberry Pi has many GPIO pins, all we needed to do was create a simple circuit between two of them that, once interrupted, would signal that it was time for the master controller to go to work.

We will need two GPIO pins, how about GPIO17 and 27?
Why two GPIOS? We could have connected a GPIO to 3V3 and GND through resistors (to protect/limit current), to ensure LOW and HIGH modes. But, trying to keep things as simple as possible from a hardware perspective (software doesn't weigh anything, hardware does), using two GPIOs made a lot of sense. Set one GPIO as input, one as output, raise the output HIGH, the input now sees a value of 1. Open the circuit (by pulling the wire out), and the input no longer sees HIGH, it now reads 0.

Our sponsors (bottom half of payload) with IR cam
radar reflector on the left, deadman's switch on right w/carabiner

A string attached on one end to the wire sticking out of the side of the payload and on the other end to a carabiner clip is really all that was needed.

Deadman's switch code


We've already covered the serial port, sh and docopt in part 2 of the computer network in near space. If you are wondering about these things (and lines 98 to 101 in the code below) I urge you to go and read that article first. I've left here the core of what is needed for implementing the software side of the deadman's switch. We first need the GPIO module. On line 9, we import it as gpio (because uppercase is usually reserved for constants). Then on line 102 we set up the gpio module to operate in BOARD mode. That means physical board pin numbers. In the field, you can always count pins, but you might not have a GPIO map handy... But if you prefer Broadcom nomenclature there is a mode for that too.



So GPIO17 is the 6th pin on the bottom and GPIO27 is the 7th. Since odd pins are at the bottom and even at the top, this means pin 11 and 13. Line 103 sets up pin 11 to be an output, and line 104 sets up pin 13 to be an input. Finally, line 105 "arms" the deadman's switch by setting pin 11 to HIGH. Pin 13 should now be reading a 1 instead of a 0.

9:  import RPi.GPIO as gpio
[...]
98:  def main(args):
99:    my_addr = int(args['<address>'])
100:
101:    ser = serial.Serial('/dev/ttyAMA0', 115200, timeout=1)
102:    gpio.setmode(gpio.BOARD)
103:    gpio.setup(11, gpio.OUT)
104:    gpio.setup(13, gpio.IN)
105:    gpio.output(11, gpio.HIGH)


We are now going into the actual functionality of the switch. We establish a simple while loop on line 161, reading pin 13. As long as we see 1, the circuit is closed and on line 162 we send a KEEPALIVE frame to the other nodes (see previous article). We also sleep for 1 second on line 163 (no need to poll faster than that). The moment we get a 0, the while loop exits, and before starting the master controller on line 165, we log our launch time on line 164 (the logging aspects will be in a future article).


[...]
159:
160:    # deadman's switch
161:    while gpio.input(13) == 1:
162:      ser.write(KEEPALIVE)
163:      sleep(1)
164:    logger.debug("We are launching! (on {})".format(datetime.now()))
165:    master_controller(ser, counter) # forever controlling the Pi network until I die


And that is it!

This can be implemented in all kinds of different projects. Have fun with it!

Francois Dion, Rich Graham, Brent Wright, Chris Shepard and Jeff Clouse
Carabiner clipped to my belt while Jeff adds redundant safety strings
Francois Dion
@f_dion

Friday, April 17, 2015

The computer network in space - Part 1!

First in flight


First in flight is the (unofficial - official is "Esse quam videri") North Carolina motto.

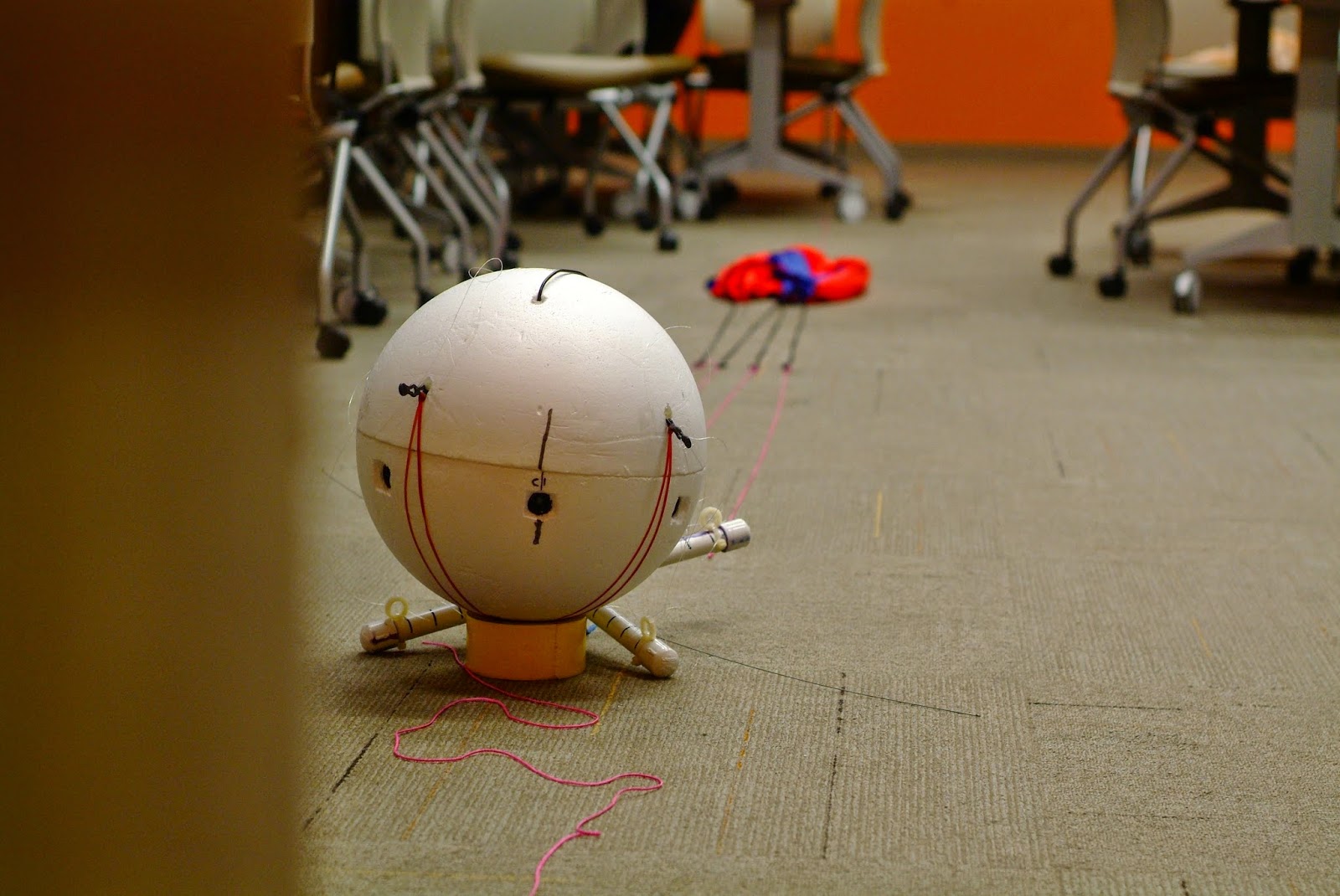

Our launch is not a first in flight from a HAB (high altitude balloon) perspective (see also: "Rocket man and the Near Space Circus"), but the mechanical aspects (see also the article on our self-leveling rigging: "learn from the past - 103 years old technology in space"), hardware and network topology and innovations packed in the software will definitely be first in flight.(Launch is now D-1, April 21st from Mocksville)

Team Near Space Circus HAB "NSC01" ready to launch

Done

  • Sending micro controllers into near space to take measurements? Done.
  • Sending a raspberry pi with a camera module into near space? Done.
  • Sending multiple gopros into near space? Done.
  • Taking pictures from near space? Done.
Anything left to do that hasn't been done?

Genesis of NSC01


One would think there is nothing left to do that has not been done before. Really, launching weather balloons for gathering data and taking high altitude pictures has been done many thousands of times before, even well before the age of the digital camera.

In fact, in NASA technical memorandum TM X-2208 published in 1971, it covers flights done in the later part of 1969 by the Langley Research Center in Virginia. This served as inspiration as to part of the payload for our own launch, an homage if you will. In this flight, they used medium format film cameras, both in the visible spectrum and the infrared.

So we started with that concept, we will have a Raspberry Pi with an infrared (PiNoir type) camera, and another with a regular CSI camera. Plus a very analog tech which I'll cover in Part 3.

And we quickly realized that we just opened Pandora's box... Innovation was possible everywhere we looked.

Eye in the sky


In my collection of Raspberry Pi related stuff, I had a few cameras already, including one infrared with an S-mount and lens. For a first flight, we could have simply gone with that and a regular raspberry pi camera (with its neutral lens which is not bad at all quality wise; neutral lenses are relatively easy to make compared to wide or tele lens). But we really wanted a wider shot, particularly as the 1080p video is cropped and gives even less coverage.

I didn't want to destroy the other modules to add the S-mount (commonly used on CCTV cameras), so I opted instead for a magnetic mount with a conversion lens. That way the camera can be used without conversion lens, or with a telephoto, wide or even a fish eye conversion lens.

Fish eye, wide, S-mount and magnetic mount RPI cameras

Of course, most people discard conversion lens as junk. And optically, they are terrible, with lots of barrel distortion and other issues. In fact, barrel distortion is easy to see on videos on youtube taken with wide (it is the built in lens actually) lens "extreme sports" type of video cameras that are so popular. The closer to the edge, the more it distorts.

But this was not going to be a show stopper for us. With the right software, I was convinced we could get some really decent shots. So I mounted a camera with a wide angle lens on top of the raspberry pi case, powered the pi with my phone spare battery pack (with a micro USB lead) and took pictures to calibrate my software (written in Python) and then went downtown Winston Salem to take pictures of buildings with lots of horizontal and vertical lines. Distortion is easily seen there.

And the results were quite nice:

Raspberry Pi camera with low cost wide angle, software corrected



What is left is the normal angling of lines due to perspective, but barely any lens distortion. Nice. Now let's move on to the computer.

Like groceries


So, a HAB with a few computers is like doing groceries for a family with a few kids. The more kids, the more expensive it gets. A single Raspberry Pi model A+ is only $20 plus shipping. And we knew from day 1 that we would use two of them. At a minimum.

Then we started looking at options to mount 4 cameras on the payload. For 360 panoramic pictures... Well, with the wide angle lens we used we'd need 5. But 6 is a nice round number, and due to crop factor of the 1080P mode, just making 360 degrees. How to connect 6 CSI cameras to 2 Raspberry Pi?

Plan A was building or buying a multiplexer. But time ran out for building, and we couldn't buy a real multiplexer. We did have a CSI switcher (made for 4 cameras per board) that I had ordered from Turkey. I had it in hand, but it never did work. I tried to get a replacement but the vendor never contacted me back. Caveat emptor.

Plan B was 1 Raspberry Pi per camera. And we had 6 regular cameras for the 360 panoramic, and 1 infrared CSI camera facing downward. So 7 Raspberry Pi it is...

Imagine your grocery bill with 7 kids...

Micro SD in their numbered SD adapters to avoid confusion

And so it went for our project. 7 Pi, 7 cameras, 7 micro sd memory cards (a mix of 32GB and 64GB cards), enough battery power for all of that. Oh yeah, power...

12V != 5V


We figured that for all the gear we would have onboard (7 Raspberry Pi, 7 CSI cameras, 1 USB camera, 2 GPS, sensors, 1 APRS transmitter doing 10W bursts every 2 minutes), we would use 3S (3 cells is series) Lithium Polymer batteries, commonly used in RC and drone applications.

Two 3S 4000 mAh LiPos with XT60 connectors; cameras

We went with two, in order to make it easier to distribute the weight and redundancy. But that meant connecting them together in parallel. This was perfect for the APRS transmitter (transmitting our location, voltage and temperature every two minutes) as it expected a 12V source.

The two LiPo batteries connect on this side

But the Raspberry Pi expect 5V, not 12V. So we added two UBECs. These are switching voltage regulators. They are not really designed to run in parallel, but we ran them for 12 hours straight many times with no issues. Look on RC forums, people say you cant do it. Well, you can. They do lose some of their efficiency that way, because they use PWM to regulate their output and measure their output as part of that. When 2 are in parallel, the output of one interferes some with the feedback loop of the other. Still, we were ok to lose some efficiency for redundancy.

5V UBECs (switching, not linear)

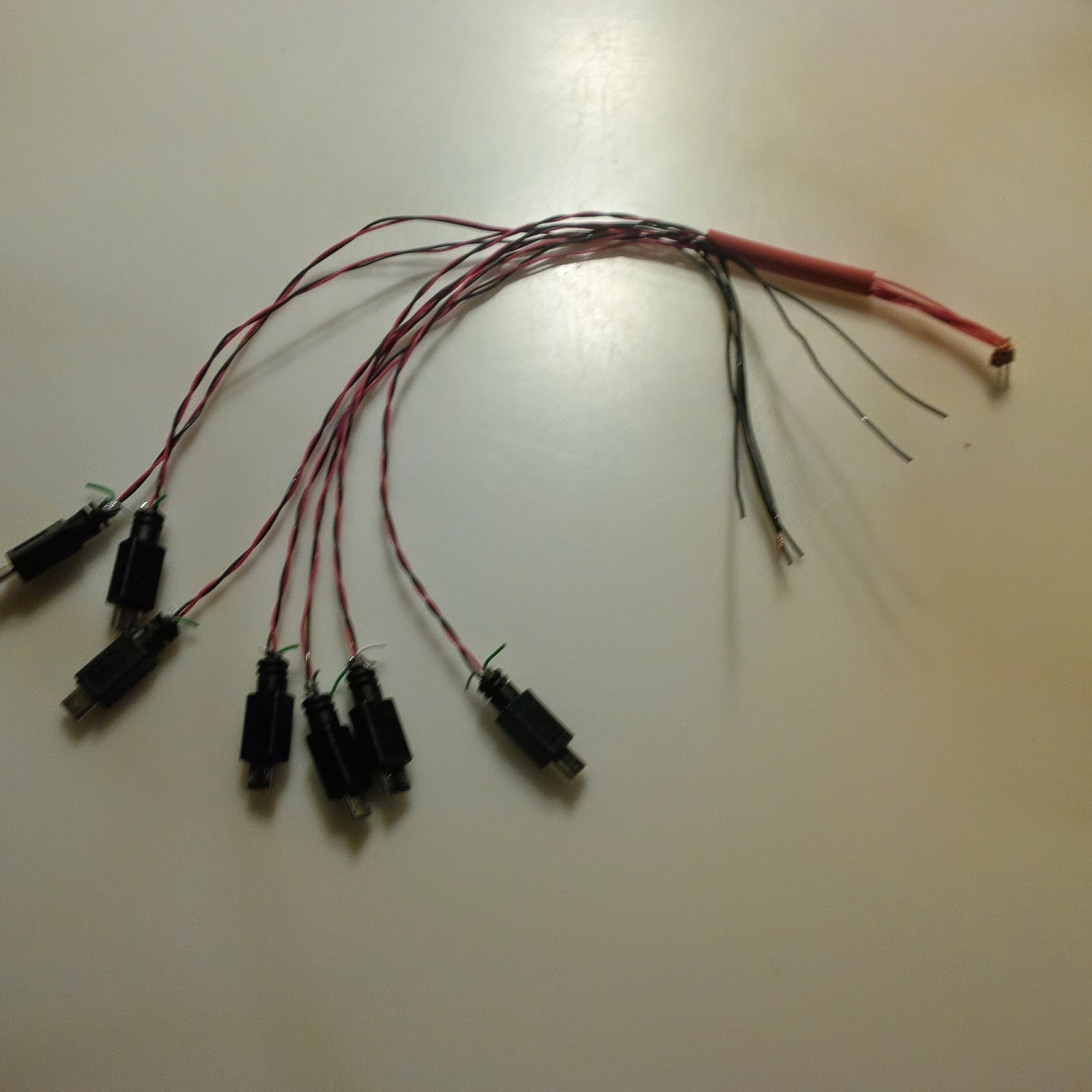

And we needed an octopus loom with 7 microusb to distribute the 5V to the 7 Raspberry Pi. It's about as light weight as we could make it... We did try to connect directly to GND and 5V on the GPIO header, but when it came time to network the 7 Pi together, it caused some issues. I'll talk about that in Part 2.

Power distribution to 7 Raspberry Pi

Where is the network?


I did say we had a computer network we were sending into space, didn't I?

Raspberry Pi #1, 2 and 7

And I'll leave you today in conclusion of part 1 with a shot of the 7 Raspberry Pi networked inside the payload.

All 7 Raspberry Pi before the power wiring harness is put in place


Part 2 will go into the details of the network itself (article is now up: http://raspberry-python.blogspot.com/2015/04/the-computer-network-in-space-part-2.html), the master/slave component and the deadman's switch (now up, also) and part 3 will talk about the data gathering aspects. And in the interim, try to guess how we are networking the 7 Raspberry Pi.

And you can track our first launch progress (and real time data on the day of the launch) by keeping an eye on #NSC01 on twitter, following @pyptug or myself.

Francois Dion
@f_dion

[Update: added links to part 2 and to the deadman's switch]
