Unlock the potential of your IoT and Edge device development with the powerful partnership of Qualcomm and Foundries.io! Our comprehensive end-to-end DevSecOps platform is designed for embedded developers like you, helping your projects to be efficient, more secure, and scalable.

This guide covers everything from creating your Factory, to flashing, booting, and testing your AI applications.

• Document Revision History
• Definitions, Acronyms, and Abbreviations
• Getting Started
  • Create an Account
  • Create a Factory
  • Members Tab
  • Fioctl Installation
  • Configure git
  • Qualcomm® Robotics RB3G2 Development Kit
  • Serial Console
  • Connect via WiFi
  • Enabling Ethernet and USB
  • SSH
  • Register Your Device
• Developer Workflows
  • Git Repositories
• Compose-Apps
  • Qualcomm® AI Hub
• Fioctl Examples
• FoundriesFactory Images
  • LmP Factory Image
• Wireguard VPN
• Updating FoundriesFactory Images
• Useful Links

Access the link below and follow the instructions to sign up and create your Factory. https://app.foundries.io/factories/+/qualcomm

Create a new account if you do not have one, or continue with your existing Github or Google account.

Sign-Up

1. Select the platform *
2. Name your Factory
3. Click the Create Factory button

* If you want to try FoundriesFactory on a different Qualcomm platform, create the Factory as suggested for Qualcomm RB3 Gen 2 Development Kit and contact Foundries.io at contact@foundries.io.

Platform Selection

NOTE: Based on the selected platform, the <machine-name> changes as shown in the table below:

The Factory owners may invite additional users to their account via email under the "Members" tab of the Factory interface. - Manage your Factory users: https://app.foundries.io/factories/<factory>/members/

Fioctl™ is a simple tool for interacting with the Foundries.io™ REST API.

• Fioctl CLI Installation

After Fioctl is properly setup, use its Git credential helper to allow pushing to your repos with FoundriesFactory.

• Configuring Git

Note: On macOS, you may encounter authentication issues due to Git on OSX using the Keychain Access Utility. The solution is to remove Keychain Access entries from your git config file.

Once creating your Factory, it will build the source code for the RB3G2 and produce a Target. A Target is a over-the-air update that can provide the build artifacts for initial provisioning.

1. Navigate To the Targets Section of Your Factory Click the latest Targets with the platform-main trigger.

Platform Main

Expand the run in the Runs section and download the Factory image.

• lmp-factory-image-qcs6490-rb3gen2-vision-kit.qcomflash.tar.gz

Factory Image

2. Extract the tar.gz.
3. Open a terminal and change the directory into lmp-factory-image-qcm6490.
4. The compressed archive contains the flashing tool qdl.
   • Note: The tool from the build has the interpreter set incorrectly.
5. Download and compile qdl for your platform:
   • git clone https://github.com/linux-msm/qdl
   • Read the README and install build dependencies
   • cd qdl
   • make
6. Disable ModemManager on some host systems if necessary.

Now configure the Qualcomm® Robotics RB3G2 Development Kit:

1. Set up DIP_SW_0 positions 1 and 2 to ON. This enables serial output to the debug port.
2. Connect the USB debug cable to the host. Baud rate is 115200.
   • You can use your favorite UART client to access the console, such as minicom, putty etc.
3. The serial connection is based on the FTDI chip:
   • /dev/serial/by-id/usb-FTDI_FT230X_Basic_UART_<serial ID>-if00-port0
4. Plug in the USB-C cable from the host.
5. Run the command to flash:
   • ./qdl --debug prog_firehose_ddr.elf rawprogram*.xml patch*.xml
6. Press and hold the F_DL button and connect the power cable.

After flashing, the device should boot the Linux microPlatform. Use your serial console to log in.

Username: fio Password: fio

Using the WiFi radio, connect it to the internet using NetworkManager CLI:

sudo nmcli device wifi connect “<AP Name>” password “<AP password>”

The sudo password is fio.

In order to enable Ethernet, provide firmware in the Yocto recipe below. This is a one time operation, which will also enable the USB type A ports to function

Register and log in to https://www.renesas.com, then download firmware.

Once downloaded, copy USB3-201-202-FW-20131112.zip at recipes-firmware/firmware/renesas-upd720201 and add the renesas-upd720201 package to your image.

git clone https://source.foundries.io/factories/<factory>/meta-subscriber-overrides.git
cd meta-subscriber-overrides
mkdir -p recipes-firmware/firmware/renesas-upd720201
cp /tmp/USB3-201-202-FW-20131112.zip recipes-firmware/firmware/renesas-upd720201
echo 'FILESEXTRAPATHS:prepend := "${THISDIR}/${PN}:"' > recipes-firmware/firmware/renesas-upd720201_20131112.bbappend
echo 'SRC_URI += "file://USB3-201-202-FW-20131112.zip"' >> recipes-firmware/firmware/renesas-upd720201_20131112.bbappend

echo 'CORE_IMAGE_BASE_INSTALL += "renesas-upd720201"' >> recipes-samples/images/lmp-factory-image.bb

git add .
git commit -s -m "renesas-upd720201: add firmware file"
git push

After you push, the FoundriesFactory will build a new target. Once built, any registered device will update over the air.

Once connected to the network you can log in over ssh if desired:

qcs6490-rb3gen2-vision-kit.local

OR

ssh fio@<IP>

Password: fio

Register your device

Your Factory produces Targets, which are references to platform images and Docker applications.

Find your Factory source code at:

• https://source.foundries.io/factories/<factory>/

Find The built Targets at:

• https://app.foundries.io/factories/<factory>/targets/

1. ci-scripts.git: Configures your factory branches - factory-config.yml
2. containers.git: Contains the source code for your Docker applications
3. lmp-manifest.git: Yocto manifest for your platform build
4. meta-subscriber-overrides.git: Yocto layer which overrides the Linux microPlatform

Compose Apps fill the gap for Factory devices in distributing applications.

• Build your own Compose Apps.
• Your Factory also has some sample Apps ready to deploy.

Qualcomm® AI Hub simplifies deploying AI models for vision, audio, and speech applications to edge devices. You can optimize, validate, and deploy your own AI models on hosted Qualcomm platform devices within minutes.

Please see our Getting Started guide to start using a Factory with AIHub.

The applications below which have a prefix of gst-ai use the models from AIHub and have been packaged into the qimsdk-lmp image in your Factory.

• If you are curious how this process works, refer to https://source.foundries.io/<factory>/containers.git/tree/qimsdk-lmp/Dockerfile
• Should you want to add or replace a model from AIHub, modify the qimsdk-lmp Dockerfile and add a RUN command to download the file into /src/models/ inside the container.
  • During runtime, the models will be placed in /opt/models and can be referenced in the Compose command to instruct the application to use a specific model.
  • Please review the gst-ai-classification docker-compose.yml in https://source.foundries.io/<factory>/containers.git as an example of how to run a different model.

YOLOv8 is not available by default in qimsdk-lmp, export the model by following the Qualcomm Intelligent Multimedia Software Development Kit (IM SDK) documentation before enabling compose apps depending on this model. Create a Qualcomm AI Hub account, generate an API token and run the export_model.sh script to export the model, then include it as part of the qimsdk-lmp repository:

curl -L -O https://raw.githubusercontent.com/quic/sample-apps-for-qualcomm-linux/refs/heads/main/scripts/export_model.sh
chmod +x export_model.sh
./export_model.sh --api-token=<API_TOKEN>
cp build/yolov8_det/yolov8_det.tflite qimsdk-lmp/yolov8_det_quantized.tflite
sed -i 's/^#COPY yolov8_det_quantized.tflite/COPY yolov8_det_quantized.tflite/' qimsdk-lmp/Dockerfile
git add qimsdk-lmp
git commit -s -m “qimsdk-lmp: add yolov8_det_quantized.tflite” && git push

This is a simple httpd server, built from a Dockerfile in the Factory source code. Enable the shellhttpd Compose App before deployment:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv shellhttpd.disabled shellhttpd
git commit -s -m “enable shellhttp” && git push

This App does not require any hardware other than a network connection.

This is a development container for the gstreamer applications listed below. It provides the assembled binaries, models, and video files for the applications to consume. If you want to build your own gstreamer pipeline application, this would be the place to start.

For more information, please see the project's README.

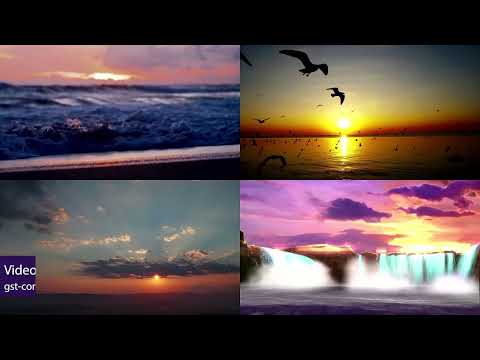

The Video wall command-line application (gst-concurrent-videoplay-composition) facilitates concurrent video decoding and playback for advanced video coding (AVC)-coded videos, and performs composition on a display for the video wall application. This application requires at least one input video file, which is expected to be an MP4 file with the AVC codec.

For a more detailed description please see Qualcomm Linux Sample Apps.

Enable the gst-concurrent-videoplay-composition Compose App before deployment:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv gst-concurrent-videoplay-composition.disabled gst-concurrent-videoplay-composition
git commit -s -m “gst-concurrent-videoplay-composition” && git push

This compose-app requires a connected display to function properly.

The Classification application (gst-ai-classification) enables subject recognition in the image. This can use the Qualcomm Neural Processing SDK runtime or the TensorFlow Lite (TFLite) runtime. The Compose file provides you a few commands you can comment/uncomment to use different models for classification.

For a detailed description see Qualcomm Linux Sample Apps.

Enable the gst-ai-classification Compose App:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv gst-ai-classification.disabled gst-ai-classification
git commit -s -m “gst-ai-classification” && git push

This App requires a connected display and the camera mezzanine to function properly.

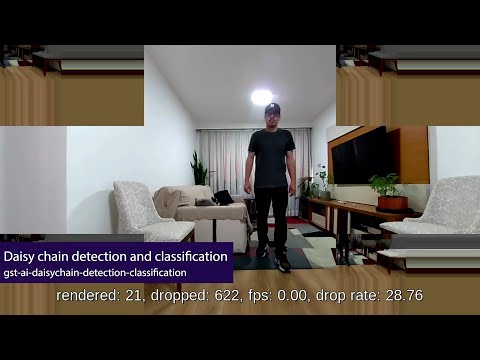

The Daisy chain detection and classification application (gst-ai-daisychain-detection-classification) enables cascaded object detection and classification with a camera and a file source. This use case involves detecting objects and classifying the detected objects.

For a detailed description see Qualcomm Linux Sample Apps. This example depends on the YOLOv8 model, please include this extra model as part of qimsdk-lmp.

Enable the gst-ai-daisychain-detection-classification Compose App:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv gst-ai-daisychain-detection-classification.disabled gst-ai-daisychain-detection-classification
cp <exported model directory/>build/yolov8_det/yolov8_det.tflite yolov8_det_quantized.tflite
git add yolov8_det.tflite
git commit -s -m “gst-ai-daisychain-detection-classification” && git push

This App requires a connected display and the camera mezzanine to function properly.

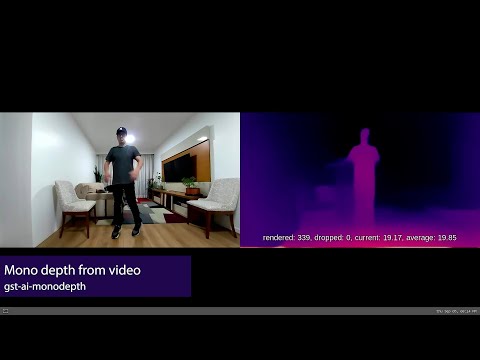

The Mono depth from video application (gst-ai-monodepth) infers depth from a live camera stream.

For detailed description see Qualcomm Linux Sample Apps.

Enable the gst-ai-monodepth Compose App:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv gst-ai-monodepth.disabled gst-ai-monodepth
git commit -s -m “gst-ai-monodepth” && git push

This App requires a connected display and the camera mezzanine to function properly.

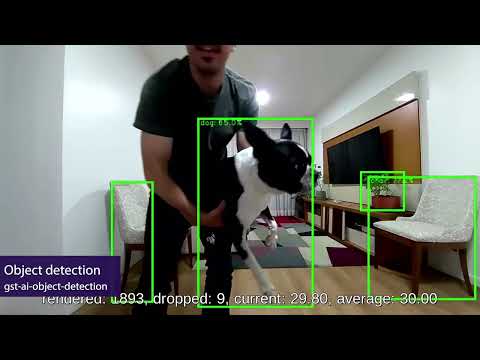

The Object detection application (gst-ai-object-detection) detects objects within images and videos. This use case demonstrates the execution of YOLOv5, YOLOv8, and YOLO-NAS using the Qualcomm Neural Processing SDK runtime.

For a detailed description see Qualcomm Linux Sample Apps.

Enable the gst-ai-object-detection Compose App:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv gst-ai-object-detection.disabled gst-ai-object-detection
git commit -s -m “gst-ai-object-detection” && git push

This App requires a connected display and the camera mezzanine to function properly.

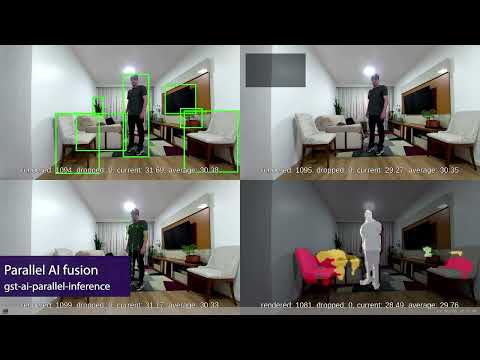

The Parallel AI fusion application (gst-ai-parallel-inference) enables object detection and classification, pose detection, and image segmentation on a live camera stream. This use case utilizes the Qualcomm Neural Processing SDK runtime for object detection and image segmentation, and the TFLite runtime for classification and pose detection.

For a detailed description see Qualcomm Linux Sample Apps. This example depends on the YOLOv8 model, please include this extra model as part of qimsdk-lmp.

Enable the gst-ai-parallel-inference Compose App:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv gst-ai-parallel-inference.disabled gst-ai-parallel-inference
git commit -s -m “gst-ai-parallel-inference” && git push

This App requires a connected display and the camera mezzanine to function properly.

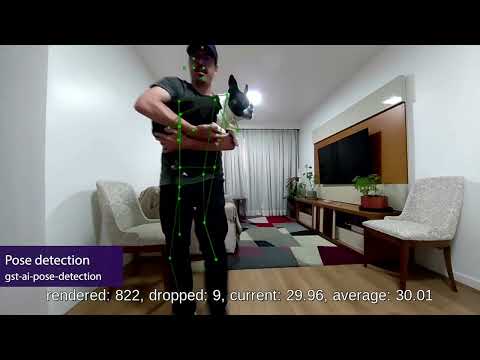

The Pose detection application (gst-ai-pose-detection) enables detection of a subjects body pose in an image or video. This use case utilizes a video stream from a camera, then leverages TFLite for pose detection, display the results on the screen.

For a detailed description see Qualcomm Linux Sample Apps.

Enable the gst-ai-pose-detection Compose App:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv gst-ai-pose-detection.disabled gst-ai-pose-detection
git commit -s -m “gst-ai-pose-detection” && git push

This App requires a connected display and the camera mezzanine to function properly.

The Image segmentation application (gst-ai-segmentation) divides an image into meaningful parts or segments, assigning a label to each homogenous segment based on similarity of attributes. This App utilizes both the Qualcomm Neural Processing SDK runtime and TFLite runtime for image segmentation.

For a detailed description see Qualcomm Linux Sample Apps.

Enable the gst-ai-segmentation Compose App:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv gst-ai-segmentation.disabled gst-ai-segmentation
git commit -s -m “gst-ai-segmentation” && git push

This App requires a connected display and the camera mezzanine to function properly.

The multiple camera streaming application (gst-multi-camera-example) enables simultaneous streaming from two camera sensors. It composes camera feeds side-by-side to display on a screen, or encodes and stores the video streams to file. Typical use cases that need multiple camera inputs are dash cameras or stereo cameras, which can use this app as a reference.

For a detailed description see Qualcomm Linux Sample Apps.

Enable the gst-multi-camera-example Compose App:

git clone https://source.foundries.io/factories/<factory>/containers.git
git mv gst-multi-camera-example.disabled gst-multi-camera-example
git commit -s -m “gst-multi-camera-example” && git push

This App requires a connected display and the camera mezzanine to function properly.

After you push, your Factory will build a new Target. Afterwaards, deploy as described below.

To deploy the applications listed below, you must have enabled them as described above. Default polling time on devices is five minutes. Once you have issued your deployment command, please wait up to five minutes to see the change reflected.

./fioctl targets list -f <factory>

./fioctl devices list -f <factory>

./fioctl devices -f <factory> config updates <device_name> --tags <tag_name>

./fioctl devices -f <factory> config updates <device_name> --apps <app_name1>,<app_name2>,<app_name3>

./fioctl devices -f <factory> config updates <device_name> --apps shellhttpd

./fioctl devices -f <factory> config updates <device_name> --apps gst-concurrent-videoplay-composition

./fioctl devices -f <factory> config updates <device_name> --apps gst-ai-classification

./fioctl devices -f <factory> config updates <device_name> --apps gst-ai-daisychain-detection-classification

./fioctl devices -f <factory> config updates <device_name> --apps gst-ai-monodepth

./fioctl devices -f <factory> config updates <device_name> --apps gst-ai-object-detection

./fioctl devices -f <factory> config updates <device_name> --apps gst-ai-object-detection

./fioctl devices -f <factory> config updates <device_name> --apps gst-ai-pose-detection

./fioctl devices -f <factory> config updates <device_name> --apps gst-ai-segmentation

./fioctl devices -f <factory> config updates <device_name> --apps gst-multi-camera-example

./fioctl devices -f <factory> config wireguard <device_name> enable/disable

Registered devices can form a VPN to allow remote access—even behind firewalls.

Steps for updating your Factory.

• Extending the LmP
• SBOMs
• Factory Containers.
