To use:
<head>
<title>My A-Frame Scene</title>
<script src="https://aframe.io/releases/1.4.1/aframe.min.js"></script>
<script src="https://cdn.jsdelivr.net/gh/kylebakerio/a-dynamic-reflection@1.1.0/dynamic-reflection.js"></script>
</head>notes:
-
breaks if you use two at the same time for some reason
- seems that the last cube camera will then be used by the original cuberendertarget...
- seems like this may be a three js bug? I can't see any evidence of my code causing this to occur right now
-
breaks in VR
- it is almost like it's trying to render the cube camera view out of one of the eye pieces...?
- todo: see if colin's component demo renders in VR? but I think the version is too old...
- it is almost like it's trying to render the cube camera view out of one of the eye pieces...?
-
todo: add ability to effect materials of gltfs
- probably just need to traverse the gltf and add env map to materials, and to listen for gltf loaded event instead of regular loaded event
- note: the old component from colin used to do this, see: https://colinfizgig.github.io/aframe_Components/
- https://github.com/colinfizgig/aframe_Components/blob/master/components/camera-cube-env.js
-
add custom cube camera that allows specifying fov and/or camera positions? current one can have 'wrong zoom' appearance on, for example, a cube that is too small
-

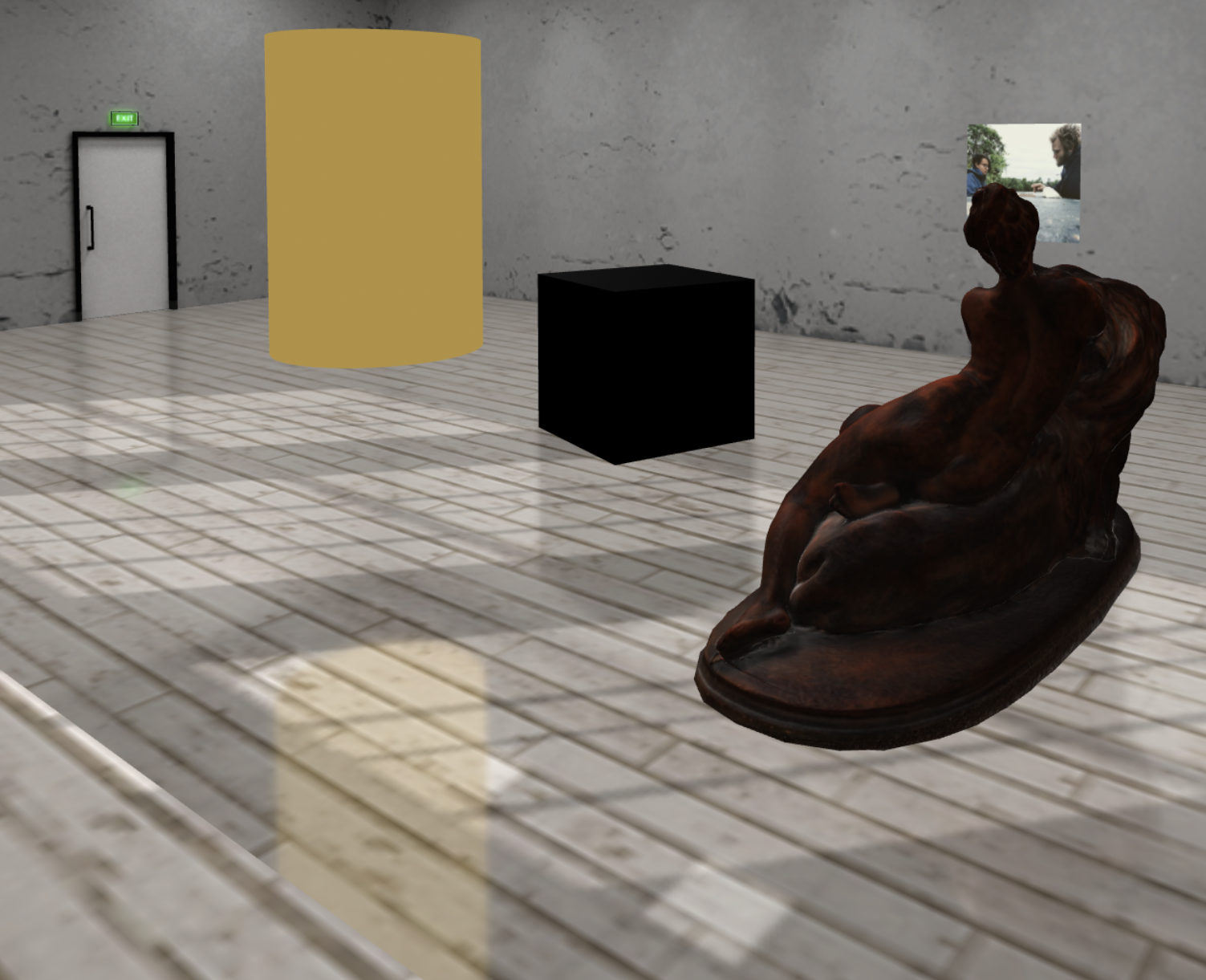

if setting this above a plane (or the bottom of a gltf), you must have the bottom side of that plane be transparent--so, needs to be a one-sided floor. This is because the reflection cube camera takes a picture from underneath that floor to work.
-
when using for a reflective floor, probably would be ideal to have a mode that generates an env map with only one camera instead of all 6;
- since we're rendering to a plane, we can probably leave 5/6 as black squares? experimentation needed.
-
would also be nice to be able to specify multiple planes, possible at multiple heights, as part of a floor system. this isn't possible with current implementation, but could be if I modify this component to allow multiple instances to share the same camera.
-
you can also try sticking a mirror below a translucent floor, instead of sticking a translucent surface on top of your floor, which should be more performant than this library's reflective floor implementation. That seems to produce a less reliable result, though, because of transparency issues. :/ You can see that demonstrated here: https://aframe-mirror-floor.glitch.me/diarmid-floor.html
-
benefit of this method: because the reflection is from an envMap, you are free to do whatever you want to the material of the floor layer, such as adjusting roughness and metalness and color.
-
downside: reduced opacity is necessary, but that also reduces intensity of shadows, so finding a balance is necessary if you also want live shadows. Also, some opacity is necessary, so it will modify the appearance of your floor.
