Note
If you want to build this yourself then go grab the files from the latest release!
| Part | Quantity | Price | Link | Description | Notes |
|---|---|---|---|---|---|
| PCB | 1 | $15.70 |
JLCPCB | 2-layer, 1.6mm, black, leaded Hasl | I wanted to get ENIG but that bumped the price by $20 |
Total $15.70 + $13.04 shipping |
|||||
| Choc v1 switches | 50 | $25.00 |
Chosfox | pink variant: 20+-5 gf linear |
$0.50 per switch |
| Choc PG1350 | 50 | $7.25 |
Chosfox | hot swap sockets | $0.145 per socket |
| 1u keycaps | 40 | $14.00 |
Chosfox | White PBT low profile | $0.35 per keycap |
| 1u homing keycaps | 2 | $0.80 |
Chosfox | White PBT low profile | $0.40 per keycap |
| 1.5u keycaps | 2 | $1.65 |
Chosfox | White PBT low profile | $0.83 per keycap |
Total cost: $48.70 + $8 shipping |
average of $0.37 per keycap |
||||
| SuperMini NRF52840 (Nice!Nano footprint) | 2 | $8.08 |
AliExpress | Wireless Microcontroller | $4.04 per MCU |
| 301230 3.7V 110mAh LiPo Battery | 2 | $7.50 |
AliExpress | the non jst ones are cheaper but the crimper is 60 bucks and there is no way im buying that | $3.75 per battery |
| Diodes | 42 | $0.99 |
Aliexpress | 1N4148 | $0.01 per diode |
| Machine Pins | 1 | $0.99 |
AliExpress | 26x2 needed to socket the two MCUs | comes in a 100 pack of 4 per header |
Total cost: $14.10 + $6.52 shipping |
|||||
| Power Switch | 4 | $0.39 |
DigiKey | added an extra switch for each side as backup | $0.10 per switch |
| JST PH 2.0mm 2-pin Connector | 4 | $0.40 |
DigiKey | $0.10 per connector |
|
Total cost: $1.96 + $8.15 tarrif/sales tax/shipping |
i cant find good matches for these on ali and shipping is ridiculous rn as well | ||||
| Machine Sockets 2.54mm | 1 | $7.35 |
Amazon | 26x2 needed to socket the two MCUs | comes in a 10 pack of 40x1 rows |
Total cost: $123.52
| Store | Shipping | Subtotal | Total | Items |
|---|---|---|---|---|
| AliExpress | $6.52 |
$14.20 |
$20.62 |
2x SuperMini NRF52840, Machine Pins, 2x LiPo Battery, 42x diodes |
| DigiKey | $8.15 (tarrifs and tax too) |
$1.96 |
$10.11 |
4x Power Switch, 4x JST Connector |
| Chosfox | $8 |
$48.70 |
$56.70 |
50x Choc v1 switches, 40x 1u keycaps, 2x 1u homing keycaps, 2x 1.5u keycaps |
| JLCPCB | $13.04 |
$15.70 |
$28.74 |
1x PCB |
| Amazon | $0 |
7.35 |
$7.35 |
machine sockets |
Panelization is the most annoying bit of this whole process. I was able to finally get it work work by using kikit to generate rails and tabs.
kikit panelize \
--layout 'grid; rows: 1; cols: 1; space: 3mm;' \
--tabs 'fixed; width: 3mm; vcount: 8;' \
--cuts 'mousebites; drill: 0.5mm; spacing: 1mm; offset: 0.2mm; prolong: 0.5mm;' \
--framing 'railstb; width: 5mm; space: 3mm; chamfer: 1mm;' \
--tooling '3hole; hoffset: 2.5mm; voffset: 2.5mm; size: 1.5mm;' \
--fiducials '3fid; hoffset: 5mm; voffset: 2.5mm; coppersize: 2mm; opening: 1mm;' \
--post 'millradius: 1mm;' \
--text 'simple; text: "THYME v1.14"; anchor: mt; voffset: 2mm;' \
--text2 'simple; text: Created on {date} JLC Order: JLCJLCJLC; anchor: mb; voffset: -2.5mm; hjustify: center; vjustify: center;' \
thyme.kicad_pcb panelization/panelized.kicad_pcb
Firmware is zmk and is maintained in the submodule /zmk. The latest firmware build can be grabbed from nightly.link/taciturnaxolotl/thyme-module/workflows/build as a zip containing the left and right half uf2 files.
The case was made in onshape and is available in this document. The case is made of PLA and printed on an A1 mini. It is likely to change quite a bit once I get my pcb assembled and can fit test stuff. Evenentually I would like to add a top plate that attaches to the bottom with magnets and mill the whole case out of aluminum.

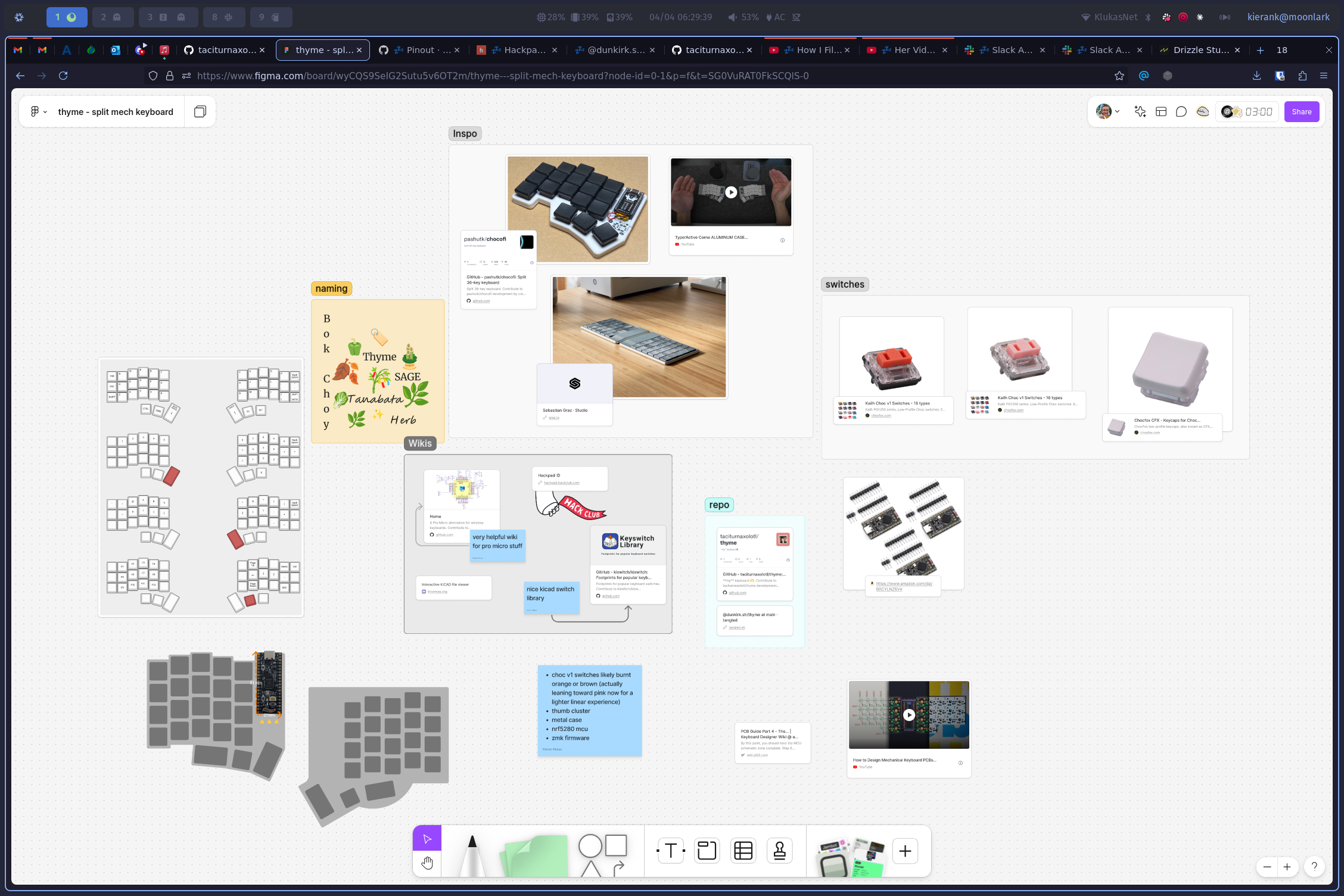

A major tool that helped with the research and organization of my thoughts was my figjam board! I used it to keep track of all the resources I found and what parts I wanted to use. Once I got to actually picking specific parts I moved that to the bom table above.
