This post was inspired by a recent exercise I went through at the prompting of my colleague Dan Mesh. The goal was to have Amazon EC2 instances connect securely to servers at a data center using OpenVPN.

In this scenario, we have a server within the data center running OpenVPN in server mode. The server has a publicly accessible IP (via a firewall NAT) with port 1194 exposed via UDP. Cloud instances which run OpenVPN in client mode are connecting to the server, get a route pushed to them to an internal network within the data center, and are then able to access servers on that internal network over a VPN tunnel.

Here are some concrete details about the network topology that I'm going to discuss.

Server A at the data center has an internal IP address of 10.10.10.10 and is part of the internal network 10.10.10.0/24. There is a NAT on the firewall mapping external IP X.Y.Z.W to the internal IP of server A. There is also a rule that allows UDP traffic on port 1194 to X.Y.Z.W.

I have an EC2 instance from which I want to reach server B on the internal data center network, with IP 10.10.10.20.

Install and configure OpenVPN on server A

Since server A is running Ubuntu (10.04 to be exact), I used this very good guide, with an important exception: I didn't want to configure the server in bridging mode, I preferred the simpler tunneling mode. In bridging mode, the internal network which server A is part of (10.10.10.0/24 in my case) is directly exposed to OpenVPN clients. In tunneling mode, there is a tunnel created between clients and server A on a separated dedicated network. I preferred the tunneling option because it doesn't require any modifications to the network setup of server A (no bridging interface required), and because it provides better security for my requirements (I can target individual servers on the internal network and configure them to be accessed via VPN). YMMV of course.

For the initial installation and key creation for OpenVPN, I followed the guide. When it came to configuring the OpenVPN server, I created these entries in /etc/openvpn/server.conf:

server 172.16.0.0 255.255.255.0
push "route 10.10.10.0 255.255.255.0"
tls-auth ta.key 0

The first directive specifies that the OpenVPN tunnel will be established on a new 172.16.0.0/24 network. The server will get the IP 172.16.0.1, while OpenVPN clients that connect to the server will get 172.16.0.6 etc.

The second directive pushes a static route to the internal data center network 10.10.10.0/24 to all connected OpenVPN clients. This way each client will know how to get to machines on that internal network, without the need to create static routes manually on the client.

The tls_auth entry provides extra security to help prevent DoS attacks and UDP port flooding.

Note that I didn't have to include any bridging-related scripts or other information in server.conf.

At this point, if you start the OpenVPN service on server A via 'service openvpn start', you should see an extra tun0 network interface when you run ifconfig. Something like this:


tun0      Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
          inet addr:172.16.0.1  P-t-P:172.16.0.2  Mask:255.255.255.255
          UP POINTOPOINT RUNNING NOARP MULTICAST  MTU:1500  Metric:1
          RX packets:2 errors:0 dropped:0 overruns:0 frame:0
          TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:100
          RX bytes:168 (168.0 B)  TX bytes:168 (168.0 B)

3) Customize client.conf:

# cp /usr/share/doc/openvpn/examples/sample-config-files/client.conf /etc/openvpn

Edit client.conf and specify:

remote X.Y.Z.W 1194     (where X.Y.Z.W is the external IP of server A)

cert client_hostname.crt
key client_hostname.key
tls-auth ta.key 1

Now if you start the OpenVPN service on the client via 'service openvpn start', you should see a tun0 interface when you run ifconfig:


tun0      Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
          inet addr:172.16.0.6  P-t-P:172.16.0.5  Mask:255.255.255.255
          UP POINTOPOINT RUNNING NOARP MULTICAST  MTU:1500  Metric:1
          RX packets:2 errors:0 dropped:0 overruns:0 frame:0
          TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:100
          RX bytes:168 (168.0 B)  TX bytes:168 (168.0 B)

In my previous post I showed how to use the boto library to manage Route 53 DNS zones. Here I will show a strategy for handling DNS within an EC2 infrastructure using Route 53.

Let's assume you have a registered domain name called mycompanycloud.com. You want all your EC2 instances to use that domain name to communicate with each other. Assume you launch a database instance that you want to refer to as db01.mycompanycloud.com. What you do is you add a CNAME record in the DNS zone for mycompanycloud.com and point it to the external AWS name assigned to that instance. For example:

# route53 add_record ZONEID db01.mycompanycloud.com CNAME ec2-51-10-11-89.compute-1.amazonaws.com 3600

The advantage of this method is that DNS queries for db01.mycompanycloud.com from within EC2 will eventually resolve the CNAME to the internal IP address of the instance, while DNS queries from outside EC2 will resolve it to the external IP address -- which is in general exactly what you want.

There's one more caveat: if you need the default DNS and search domain in /etc/resolv.conf to be mycompanycloud.com, you need to configure the DHCP client to use that domain, by adding this line to /etc/dhcp3/dhclient.conf:

supersede domain-name "mycompanycloud.com ec2.internal compute-1.internal" ;

Then edit/overwrite /etc/resolv.conf and specify:

nameserver 172.16.0.23
domain mycompanycloud.com
search mycompanycloud.com ec2.internal compute-1.internal

The line in dhclient.conf will ensure that your custom resolv.conf file will be preserved across reboots -- which is not usually the case in EC2 with the default DHCP behavior (thanks to Gerald Chao for pointing out this solution to me).

Of course, you should have all this in the Chef or Puppet recipes you use when you build out a new instance.

I've been applying this strategy for a while and it works out really well, and it also allows me to not run and take care of my own BIND servers in EC2.

Here's a quick post that shows how to manage Amazon Route 53 DNS zones and records using the ever-useful boto library from Mitch Garnaat. Route 53 is a typical pay-as-you-go inexpensive AWS service which you can use to host your DNS zones. I wanted to play with it a bit, and some Google searches revealed two good blog posts: "Boto and Amazon Route53" by Chris Moyer and "Using boto to manage Route 53" by Rob Ballou. I want to thank those two guys for blogging about Route 53, their posts were a great help to me in figuring things out.

Install boto

My machine is running Ubuntu 10.04 with Python 2.6. I ran 'easy_install boto', which installed boto-2.0rc1. This also installs several utilities in /usr/local/bin, of interest to this article being /usr/local/bin/route53 which provides an easy command-line-oriented way of interacting with Route 53.

Create boto configuration file

I created ~/.boto containing the Credentials section with the AWS access key and secret key:

# cat ~./boto
[Credentials]
aws_access_key_id = "YOUR_ACCESS_KEY"
aws_secret_access_key = "YOUR_SECRET_KEY"

Interact with Route 53 via the route53 utility

If you just run 'route53', the command will print the help text for its usage. For our purpose, we'll make sure there are no errors when we run:

# route53 ls

If you don't have any DNS zones already created, this will return nothing.

Create a new DNS zone with route53

We'll create a zone called 'mytestzone':

# route53 create mytestzone.com
Pending, please add the following Name Servers:
 ns-674.awsdns-20.net
 ns-1285.awsdns-32.org
 ns-1986.awsdns-56.co.uk
 ns-3.awsdns-00.com

Note that you will have to properly register 'mytestzone.com' with a registrar, then point the name server information at that registrat to the name servers returned when the Route 53 zone was created (in our case the 4 name servers above).

At this point, if you run 'route53 ls' again, you should see your newly created zone. You need to make note of the zone ID:

root@m2:~# route53 ls
================================================================================
| ID:   MYZONEID
| Name: mytestzone.com.
| Ref:  my-ref-number
================================================================================
{}

You can also get the existing records from a given zone by running the 'route53 get' command which also takes the zone ID as an argument:

# route53 get MYZONEID
Name                                   Type  TTL                  Value(s)
mytestzone.com.                        NS    172800               ns-674.awsdns-20.net.,ns-1285.awsdns-32.org.,ns-1986.awsdns-56.co.uk.,ns-3.awsdns-00.com.
mytestzone.com.                        SOA   900                  ns-674.awsdns-20.net. awsdns-hostmaster.amazon.com. 1 7200 900 1209600 86400

Adding and deleting DNS records using route53

Let's add an A record to the zone we just created. The route53 utility provides an 'add_record' command which takes the zone ID as an argument, followed by the name, type, value and TTL of the new record, and an optional comment. The TTL is also optional, and defaults to 600 seconds if not specified. Here's how to add an A record with a TTL of 3600 seconds:

# route53 add_record MYZONEID test.mytestzone.com A SOME_IP_ADDRESS 3600
{u'ChangeResourceRecordSetsResponse': {u'ChangeInfo': {u'Status': u'PENDING', u'SubmittedAt': u'2011-06-20T23:01:23.851Z', u'Id': u'/change/CJ2GH5O38HYKP0'}}}

Now if you run 'route53 get MYZONEID' you should see your newly added record.

To delete a record, use the 'route53 del_record' command, which takes the same arguments as add_record. Here's how to delete the record we just added:

# route53 del_record Z247A81E3SXPCR test.mytestzone.com. A SOME_IP_ADDRESS
{u'ChangeResourceRecordSetsResponse': {u'ChangeInfo': {u'Status': u'PENDING', u'SubmittedAt': u'2011-06-21T01:14:35.343Z', u'Id': u'/change/C2B0EHROD8HEG8'}}}

Managing Route 53 programmatically with boto

As useful as the route53 command-line utility is, sometimes you need to interact with the Route 53 service from within your program. Since this post is about boto, I'll show some Python code that uses the Route 53 functionality.

Here's how you open a connection to the Route 53 service:

from boto.route53.connection import Route53Connection
conn = Route53Connection()

(this assumes you have the AWS credentials in the ~/.boto configuration file)

Here's how you retrieve and walk through all your Route 53 DNS zones, selecting a zone by name:

ROUTE53_ZONE_NAME = "mytestzone.com."

zones = {}
conn = Route53Connection()

results = conn.get_all_hosted_zones()
zones = results['ListHostedZonesResponse']['HostedZones']
found = 0
for zone in zones:
    print zone
    if zone['Name'] == ROUTE53_ZONE_NAME:
        found = 1
        break
if not found:
    print "No Route53 zone found for %s" % ROUTE53_ZONE_NAME

(note that you need the ending period in the zone name that you're looking for, as in "mytestzone.com.")

Here's how you add a CNAME record with a TTL of 60 seconds to an existing zone (assuming the 'zone' variable contains the zone you're looking for). You need to operate on the zone ID, which is the identifier following the text '/hostedzone/' in the 'Id' field of the variable 'zone'.

from boto.route53.record import ResourceRecordSets
zone_id = zone['Id'].replace('/hostedzone/', '')
changes = ResourceRecordSets(conn, zone_id)
change = changes.add_change("CREATE", 'test2.%s' % ROUTE53_ZONE_NAME, "CNAME", 60)
change.add_value("some_other_name")
changes.commit()

To delete a record, you use the exact same code as above, but with "DELETE" instead of "CREATE".

I leave other uses of the 'route53' utility and of the boto Route 53 API as an exercise to the reader.

Here's a list of 25 technical books that had a strong influence on my career, presented in a somewhat chronological order of my encounters with them:

1. "The Art of Computer Programming", esp. vol. 3 "Sorting and Searching" - Donald Knuth
2. "Operating Systems" - William Stallings
3. "Introduction to Algorithms" - Thomas Cormen et al.
4. "The C Programming Language" - Brian Kernighan and Dennis Ritchie
5. "Programming Windows" - Charles Petzold
6. "Writing Solid Code" - Steve Maguire
7. "The Practice of Programming" - Brian Kernighan and Rob Pike
8. "Computer Networks - a Systems Approach" - Larry Peterson and Bruce Davie
9. "TCP/IP Illustrated" - W. Richard Stevens
10. "Distributed Systems - Concepts And Design" - George Coulouris et al.
11. "DNS and BIND" - Cricket Liu and Paul Albitz
12. "UNIX and Linux System Administration Handbook" - Evi Nemeth et al.
13. "The Mythical Man-Month" - Fred Brooks
14. "Programming Perl" - Larry Wall et al.
15. "Counter Hack Reloaded: a Step-by-Step Guide to Computer Attacks and Effective Defenses" - Edward Skoudis and Tom Liston
16. "Programming Python" - Mark Lutz
17. "Lessons Learned in Software Testing" - Cem Kaner, James Bach, Bret Pettichord
18. "Refactoring - Improving the Design of Existing Code" - Martin Fowler
19. "The Pragmatic Programmer" - Andrew Hunt and David Thomas
20. "Becoming a Technical Leader" - Gerald Weinberg
21. "Extreme Programming Explained" - Kent Beck
22. "Programming Amazon Web Services" - James Murty
23. "Building Scalable Web Sites" - Cal Henderson
24. "RESTful Web Services" - Leonard Richardson, Sam Ruby
25. "The Art of Capacity Planning" - John Allspaw

I've been experimenting with setting up RAID 0 across ephemeral drives on EC2 instances. The initial setup, be it with mdadm and lvm, or directly with lvm, is not that hard -- what has proven challenging is surviving reboots. Unless you perform certain tricks, your EC2 instance will be blissfully unaware of its new setup after a reboot. What's more, if you try to mount the new striped volume at boot time by adding it to /etc/fstab, chances are you won't even be able to ssh into the instance anymore. It happened to me many times while experimenting, hence this blog post.

Update: I realize I didn't go into details about the use case of this type of setup. This is useful if you don't want to incur EBS performance and reliability penalties, and yet you have a data set that is larger than the 400 GB offered by an individual ephemeral drive. Of course, if your instance dies, so do the ephemeral drives (after all they are named like this for a reason...) -- so make sure you have a good backup/disaster recovery strategy for the data you store there!

Here is a collection of blog posts I wrote over the last 3 years or so. Some of them are practical step-by-step tutorials on using various tools for managing cloud instances, while others talk about lessons learned the hard way, by deploying large-scale infrastructures in the cloud. I am aggregating them here for ease of future reference:

Lessons learned

• Experiences deploying a large-scale infrastructure in Amazon EC2 (April 2009)
• Lessons learned from deploying a production database in EC2 (April 2011)
• Dark launching and other lessons from Facebook on massive deployments (July 2009)
• You're not a cloud provider if you don't provide an API (February 2009)

• Experiences with Amazon EC2 and EBS (September 2008)
• Update on EC2 and EBS (October 2008)
• Deploying EC2 instances from the command line (December 2008)
• Working with Amazon EC2 regions (December 2008)

We needed to use ImageFlow for some internal testing of image manipulations (esp. reflections). With a stock php5/libgd2 install in Ubuntu 10.04, some calls to the ImageFlow library would fail with:

"GD library is too old. Version 2.0.1 or later is required, and 2.0.28 is strongly recommended."

The libraries installed by Ubuntu were:

$ dpkg -l | grep libgd2
rc  libgd2-noxpm                               2.0.36~rc1~dfsg-3ubuntu1.9.04.1         GD Graphics Library version 2 (without XPM s
ii  libgd2-xpm                                 2.0.36~rc1~dfsg-3ubuntu1.9.04.1         GD Graphics Library version 2
$ dpkg -l | grep php5-gd
ii  php5-gd                                    5.2.6.dfsg.1-3ubuntu4.6                 GD module for php5

The issue here is that Ubuntu does not use the version of GD which is bundled with PHP. See this discussion for more details.

So...some googling around later, I stumbled on this great howtoforge post by patusovniak on "Recompiling PHP5 with bundled support for GD in Ubuntu". It also serves as a good overview of building Ubuntu packages from source. The only observation I have is that after I ran the step

dpkg-buildpackage -rfakeroot

I had to install all .deb packages in /usr/src. So I did

cd /usr/src
dpkg -i *.deb

When running phpinfo(), the GD section now looks:

gd

GD Support enabled
GD Version bundled (2.0.34 compatible)
FreeType Support enabled
FreeType Linkage with freetype
FreeType Version 2.3.11
T1Lib Support enabled
GIF Read Support enabled
GIF Create Support enabled
JPEG Support enabled
libJPEG Version 6b
PNG Support enabled
libPNG Version 1.2.42
WBMP Support enabled
XPM Support enabled
XBM Support enabled

Hopefully this will be useful to someone out there trying to desperately use a newer version of GD with PHP in Ubuntu...

In light of the Big EC2 Outage of 2011, I thought I'd offer some perspective on my experiences in deploying and maintaining a production database in EC2. I find it amusing to read some blog posts (esp. the one from SmugMug) where people brag about how they never went down during the EC2 outage, while saying in the same breath that their database infrastructure was hosted somewhere else...duh!

I will give a short history of why we (Evite) ended up hosting our database infrastructure in EC2. After all, this is not how people start using the cloud, since it's much easier to deploy web or app servers in the cloud. I will also highlight some lessons learned along the way.

In the summer of 2009 we decided to follow the example of FriendFeed and store our data in an almost schema-less fashion, but still use MySQL. At the time, NoSQL products such as Cassandra, Riak, etc were still very much untested at large scale, so we thought we'd use something we're familiar with. We designed our database layer from the get go to be horizontally scalable by sharding at the application layer. We store our data in what we call 'buckets', which are MySQL tables with an ID/key and a blob of JSON data corresponding to that ID, plus a few other date/time-related columns for storing the creation and update timestamps for the JSON blob. We started with 1,024 such buckets spread across 8 MySQL instances, so 128 buckets per instance. The number 8 seemed like a good compromise between capacity and cost, and we also did some initial load testing against one server to confirm this number.

We initially rolled out the database infrastructure on 8 Dell PE2970s, each with 16 GB of RAM and 2 quad-core CPUs. Each server ran 2 MySQL instances, for a total of 16, out of each 8 were active at any time, and the other 8 were passive -- each of the active MySQL instances was in a master-master pair with a passive instance running on a different server. This was done so that if any server went down, we still had 8 active MySQL in the mix. We had HAProxy load balancing across each pair of active/passive instances, sending all traffic to the active one, unless it went down, at which point traffic would be sent automatically to the passive one (I blogged about this setup and its caveats here).

As for the version of MySQL, we ran 5.1.37, which was pretty new at the time.

At this point, we did a lot of load testing using BrowserMob, which allowed us to exercise our application in an end-to-end fashion, in the same way a regular user would. All load tests pointed to the fact that we had indeed sufficient firepower at our disposal for the DB layer.

Two important things to note here:

1) We ran the load test against empty databases;
2) We couldn't do a proper 'dark launching' for a variety of reasons, the main one being that the 'legacy' code we were replacing was in a state where nobody dared to touch it -- so we couldn't send existing production traffic to our new DB infrastructure;

We deployed this infrastructure in production in May/June 2009, and it performed well for a few months. At some point, in late September 2009, and with our highest traffic of the year expected to start before Halloween, we started to see a performance degradation. The plain vanilla version of MySQL we used didn't seem to exercise the CPU cores uniformly, and CPU wait time was also increasing.

I should also point out here that our application is *very* write-intensive, so the fact the we had 2 MySQL instances per server, both in a master-master setup with another 2 instances running on a different server, started to tax more and more the CPU and RAM resources of each server. In particular, because each server had only 16 GB RAM, the innodb_buffer_pool_size (set initially at 4 GB for each of the 2 MySQL instances) was becoming insufficient, due also to the constant increase of our database size. It also turned out we were updating the JSON blobs too frequently and in some cases unnecessarily, thus causing even more I/O.

At this point, we had a choice of either expanding our hardware at the data center, or shooting for 'infinite' horizontal scale by deploying in EC2. We didn't want to wait 2-3 weeks for the former to happen, so we decided to go into the cloud. We also took the opportunity to do the following:

• we replaced vanilla MySQL with the Percona XtraDB distribution, which includes a multitude of patches that improve the performance of MySQL especially on multi-core servers
• we engaged Percona consultants to audit our MySQL setup and recommend improvements, especially in the I/O area
• we 'flattened' our MySQL server farm by deploying 16 MySQL masters (each an m1.xlarge in EC2) backed by 16 MySQL slaves (each an m1.large in EC2); we moved away from master-master to a simpler master-slave, because the complexities and the potential subtle issues of the master-master setup were not worth the hassle (in short, we have seen at least one case where the active master was overloaded, so it stopped responded to the HAProxy health checks; this caused HAProxy to fail over to the passive master, which wasn't fully caught up replication-wise with the active one; this caused a lot of grief to us)
• we eliminated the unnecessary JSON blob updates, which tremendously reduced the writes to our database

Here are some notes I jotted down while installing and configuring Graphite, which isn't a trivial task, although the official documentation isn't too bad. The next step is to turn them into a Chef recipe. These instructions apply to Ubuntu 10.04 32-bit with Python 2.6.5 so YMMV.

Install pre-requisites

# apt-get install python-setuptools
# apt-get install python-memcache python-sqlite
# apt-get install apache2 libapache2-mod-python pkg-config
# easy_install-2.6 django

Install pixman, cairo and pycairo

# wget http://cairographics.org/releases/pixman-0.20.2.tar.gz
# tar xvfz pixman-0.20.2.tar.gz
# cd pixman-0.20.2
# ./configure; make; make install

# wget http://cairographics.org/releases/cairo-1.10.2.tar.gz
# tar xvfz cairo-1.10.2.tar.gz
# cd cairo-1.10.2
# ./configure; make; make install

BTW, the pycairo install was the funkiest I've seen so far for a Python package, and that says a lot:

# wget http://cairographics.org/releases/py2cairo-1.8.10.tar.gz
# tar xvfz py2cairo-1.8.10.tar.gz
# cd pycairo-1.8.10
# ./configure --prefix=/usr
# make; make install
# echo ‘/usr/local/lib’ > /etc/ld.so.conf.d/pycairo.conf
# ldconfig

Install graphite packages (carbon, whisper, graphite webapp)

I just posted my slides on "Working on the multi-cloud with libcloud" to Slideshare. It's a talk I gave at the SoCal Piggies meeting in February 2011.

What prompted this post was an incident we had in the very early hours of this past Tuesday, when we started to see a lot of packet loss, increased latency and timeouts between some of our servers hosted at a data center on the US East Coast, and some instances we have running in EC2, also in the US East region. The symptoms were increased error rates in some application calls that we were making from one back-end server cluster at the data center into another back-end cluster in EC2. These errors weren't affecting our customers too much, because all failed requests were posted to various queues and reprocessed.

There had also been network maintenance done that night within the data center, so we weren't sure initially if it's our outbound connectivity into EC2 or general inbound connectivity into EC2 that was the culprit. What was strange (and unexpected) too was that several EC2 availability zones seemed to be affected -- mostly us-east-1d, but we were also seeing increased latency and timeouts into 1b and 1a. That made it hard to decide whether the issue was with EC2 or with us.

Running traceroutes from different source machines (some being our home machines in California, another one being a Rackspace cloud server instance in Chicago) revealed that packet loss and increased latency occurred almost all the time at the same hop: a router within the Level 3 network upstream from the Amazon EC2 network. What was frustrating too was that the AWS Status dashboard showed everything absolutely green. Now you can argue that this wasn't necessarily an EC2 issue, but if I were Amazon I would like to monitor the major inbound network paths into my infrastructure -- especially when it has the potential to affect several availability zones at once.

This whole issue lasted approximately 3.5 hours, then it miraculously stopped. Somebody must have fixed a defective router. Twitter reports from other people experiencing the exact same issue revealed that the issue was seen as fixed for them at the very minute that it was fixed for us too.

This incident brought home a valuable point for me though: we needed more monitors than we had available. We were monitoring connectivity 1) within the data center, 2) within EC2, and 3) between our data center and EC2. However, we also needed to monitor 4) inbound connectivity into EC2 going from sources that were outside of our data center infrastructure. Only by triangulating (for lack of a better term) our monitoring in this manner would we be sure which network path was to blame. Note that we already had Pingdom set up to monitor various URLs within our site, but like I said, the front-end stuff wasn't affected too much by that particular issue that night.

So...the next day we started up a small Rackspace cloud server in Chicago, and a small Linode VPS in Fremont, California, and we added them to our Nagios installation. We run the same exact checks from these servers into EC2 that we run from our data center into EC2. This makes network issues faster to troubleshoot, although unfortunately not easier to solve -- because we could be depending on a 3rd party to solve them.

I guess a bigger point to make, other than ABM/Always Be Monitoring, is OYA/Own Your Availability (I didn't come up with this, I personally first saw it mentioned by the @fastip guys). To me, what this means is to deploy your infrastructure across multiple providers (data centers/clouds) so that you don't have a single point of failure at the provider level. This is obviously easier said than done....but we're working on it as far as our infrastructure goes.

What I like to see:

• Live demo of the technology/tool/process you are describing (or at least a screencast)
• Lessons learned -- the most interesting ones are the failures
• If you're presenting something you created:
• compare and contrast it with existing solutions
• convince me you're not suffering from the NIH syndrome
• convince me your creation was born out of necessity, ideally from issues you needed to solve in production
• Hard data (charts/dashboards)
• Balance between being too shallow and going too deep when covering your topic
• keep in mind both the HOW and the WHY of the topic
• Going above and beyond the information I can obtain with a simple Google search for that topic
• Pointers to any tools/resources you reference (GitHub pages preferred)

One of the most interesting events for me this year at PyCon was an Open Space session organized by Nate Aune on deployment, hosting and configuration management. The session was very well attended, and it included representatives of a large range of companies. Here are some of them, if memory serves well: Disqus, NASA, Opscode, DjangoZoom, Eucalyptus, ep.io, Gondor, Whiskey Media ... and many more that I wish I could remember (if you were there and want to add anything, please leave a comment here).

Here are some things my tired brain remembers from the discussions we had:

• everybody seems to be using virtualenv when deploying their Python applications
• everybody seems to be using Fabric in one way or another to push changes to remote nodes
• the participants seemed to be split almost equally between Puppet and Chef for provisioning
• the more disciplined of the companies (ep.io for example) use Puppet/Chef both for provisioning and application deployment and configuration (ep.io still uses Fabric for stopping/starting services on remote nodes for example)
• other companies (including us at Evite) use Chef/Puppet for automated provisioning of the OS + pre-requisite packages, then use Fabric to push the deployment of the application because they prefer the synchronous aspect of a push approach
• upgrading database schemas is hard; many people only do additive changes (NoSQL makes this easier, and as far as relational databases go, PostgreSQL makes it easier than MySQL )
• many people struggle with how best to bundle their application with other types of files, such as haproxy or nginx configurations
• at Evite we face the same issue, and we came up with the notion of a bundle, a directory structure that contains the virtualenv of the application, the configuration files for the application, and all the other configuration files for programs that interact with our application -- haproxy, nginx, supervisord for example
• when we do a deploy, we check out a bundle via a revision tag, then we push the bundle to a given app server
• some people prefer to take the OS package approach here, and bundle all the above types of files in an rpm or deb package
• Noah Kantrowitz has released 2 Chef-related Python tools that I was not aware of: PyChef (a Python client that knows how to query a Chef server) and commis (a Python implementation of a Chef server, with the goal of being less complicated to install than its Ruby counterpart)
• LittleChef was mentioned as a way to run Chef Solo on a remote node via fabric, thus giving you the control of a 'push' method combined with the advantage of using community cookbooks already published for Chef
• I had to leave towards the end of the meeting, when people started to discuss the hosting aspect, so I don't have a lot to add here -- but it is interesting to me to see quite a few companies that have Platform-as-a-Service (PaaS) offerings for Python hosting: DjangoZoom, ep.io, Gondor (ep.io can host any WSGI application, while the DjangoZoom and Gondor are focused on Django)

All in all, there were some very interesting discussions that showed that pretty much everybody is struggling with similar issues. There is no silver bullet, but there are some tools and approaches that can help make your life easier in this area. My impression is that the field of automated deployments and configuration management, even though changing fast, is also maturing fast, with a handful of tools dominating the space. It's an exciting space to play in!

Devops. It's the new buzzword. Go to any tech conference these days and you're sure to find an expert panel on the 'what' and 'why' of devops. These panels tend to be light on the 'how', because that's where the rubber meets the road. I tried to give a step-by-step description of how you can become a Ninja Rockstar Internet Samurai devops in my blog post on 'How to whip your infrastructure into shape'.

Here I just want to say that I am struck by the parallels that exist between the activities of developer testing and operations monitoring. It's not a new idea by any means, but it's been growing on me recently.

Test-infected vs. monitoring-infected

Good developers are test-infected. It doesn't matter too much whether they write tests before or after writing their code -- what matters is that they do write those tests as soon as possible, and that they don't consider their code 'done' until it has a comprehensive suite of tests. And of course test-infected developers are addicted to watching those dots in the output of their favorite test runner.

Good ops engineers are monitoring-infected. They don't consider their infrastructure build-out 'done' until it has a comprehensive suite of monitoring checks, notifications and alerting rules, and also one or more dashboard-type systems that help them visualize the status of the resources in the infrastructure.

Adding tests vs. adding monitoring checks

Whenever a bug is found, a good developer will add a unit test for it. It serves as a proof that the bug is now fixed, and also as a regression test for that bug.

Whenever something unexpectedly breaks within the systems infrastructure, a good ops engineer will add a monitoring check for it, and if possible a graph showing metrics related to the resource that broke. This ensures that alerts will go out in a timely manner next time things break, and that correlations can be made by looking at the metrics graphs for the various resources involved.

Ignoring broken tests vs. ignoring monitoring alerts

When a test starts failing, you can either fix it so that the bar goes green, or you can ignore it. Similarly, if a monitoring alert goes off, you can either fix the underlying issue, or you can ignore it by telling yourself it's not really critical.

The problem with ignoring broken tests and monitoring alerts is that this attitude leads slowly but surely to the Broken Window Syndrome. You train yourself to ignore issues that sooner or later will become critical (it's a matter of when, not if).

A good developer will make sure there are no broken tests in their Continuous Integration system, and a good ops engineer will make sure all alerts are accounted for and the underlying issues fixed.

Improving test coverage vs. improving monitoring coverage

Although 100% test coverage is not sufficient for your code to be bug-free, still, having something around 80-90% code coverage is a good measure that you as a developer are disciplined in writing those tests. This makes you sleep better at night and gives you pride in producing quality code.

For ops engineers, sleeping better at night is definitely directly proportional to the quantity and quality of the monitors that are in place for their infrastructure. The more monitors, the better the chances that issues are caught early and fixed before they escalate into the dreaded 2 AM pager alert.

Measure and graph everything

The more dashboards you have as a devops, the better insight you have into how your infrastructure behaves, from both a code and an operational point of view. I am inspired in this area by the work that's done at Etsy, where they are graphing every interesting metric they can think of (see their 'Measure Anything, Measure Everything' blog post).

As a developer, you want to see your code coverage graphs showing decent values, close to that mythical 100%. As an ops engineer, you want to see uptime graphs that are close to the mythical 5 9's.

But maybe even more importantly, you want insight into metrics that tie directly into your business. At Evite, processing messages and sending email reliably is our bread and butter, so we track those processes closely and we have dashboards for metrics related to them. Spikes, either up or down, are investigated quickly.

Here are some examples of the dashboards we have. For now these use homegrown data collection tools and the Google Visualization API, but we're looking into using Graphite soon.

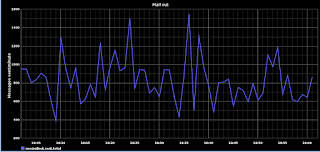

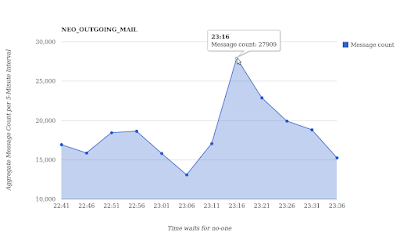

Outgoing email messages in the last hour (spiking at close to 100 messages/second):

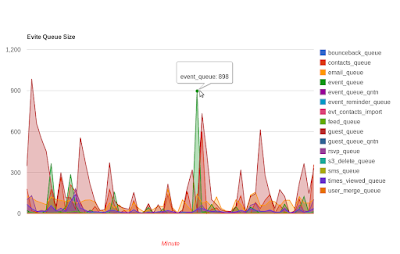

Size of various queues we use to process messages (using a homegrown queuing mechanism):

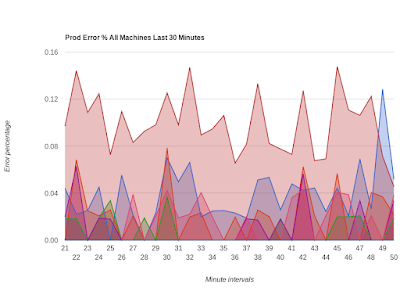

Percentage of errors across some of our servers:



Associated with these metrics we have Nagios alerts that fire when certain thresholds are being met. This combination allows our devops team to sleep better at night.

There's a lot of buzz on Twitter on how the recently announced AWS CloudFormation service spells the death of configuration management tools such as Puppet/Chef/cfengine/bcfg2. I happen to think that the opposite is true.

CloudFormation is a great way to provision what it calls a 'stack' in your EC2 infrastructure. A stack comprises several AWS resources such as EC2 instances, EBS volumes, Elastic Load Balancers, Elastic IPs, RDS databases, etc. Note that it was always possible to do this via your own homegrown tools by calling in concert the various APIs offered by these services/resources. What CloudFormation brings to the table is an easy way to describe the relationships between these resources via a JSON file which they call a template.

Some people get tripped by the inclusion in the CloudFormation sample templates of applications such as WordPress, Joomla or Redmine -- they think that CloudFormation deals with application deployments and configuration management. If you look closely at one of these sample templates, let's say the Joomla one, you'll see that what happens is simply that a pre-baked AMI containing the Joomla installation is used when launching the EC2 instances included in the CloudFormation stack. Also, the UserData mechanism is used to pass certain values to the instance. They do add a nice feature here where you can reference attributes defined in other parts of the stack template, such as DB endpoint address in this example:

"UserData": {
          "Fn::Base64": {
            "Fn::Join": [
              ":",
              [
                {
                  "Ref": "JoomlaDBName"
                },
                {
                  "Ref": "JoomlaDBUser"
                },
                {
                  "Ref": "JoomlaDBPwd"
                },
                {
                  "Ref": "JoomlaDBPort"
                },
                {
                  "Fn::GetAtt": [
                    "JoomlaDB",
                    "Endpoint.Address"
                  ]
                },
                {
                  "Ref": "WebServerPort"
                },
                {
                  "Fn::GetAtt": [
                    "ElasticLoadBalancer",
                    "DNSName"
                  ]
                }
              ]
            ]
          }
        },

However, all this was also possible before CloudFormation. You were always able to bake your own AMI containing your own application, and use the UserData mechanism to run whatever you want at instance creation time. Nothing new here. This is NOT configuration management. This will NOT replace the need for a solid deployment and configuration management tool. Why? Because rolling your own AMI results in an opaque 'black box' deployment. You need to document and version your per-baked AMIs carefully, then develop a mechanism for associating an AMI ID with a list of packages installed on that AMI. If you think about it, you actually end up writing an asset management tool. Then if you need to deploy a new version of the application, you either bake a new AMI (painful), or you reach for a real deployment/config mgmt tool to do it.

The alternative, which I espouse, is to start with a bare-bone AMI (I use the official Ubuntu AMIs provided by Canonical) and employ the UserData mechanism to bootstrap the installation of a configuration management client such as chef-client or the Puppet client. The newly created instance then 'phones home' to your central configuration management server (Chef server or Puppetmaster for example) and finds out how to configure itself. The beauty of this approach is that the config mgmt server keeps track of the customizations made on the client. No need for you to document that separately -- just use the search functions provided by the config mgmt tool to find out which packages and applications have been installed on the client.

The barebone AMI + config mgmt mechanism does result in EC2 instances taking longer to get fully configured initially (as opposed to the pre-baked AMI technique), but the flexibility and control you gain over those instances is well worth it.

One other argument, that I almost don't need to make, is that the pre-baked AMI technique is very specific to EC2. You will have to reinvent the wheel if you want to deploy your infrastructure to a different cloud provider, or inside your private cloud or datacenter.

So.....do continue to hone your skills at learning how to fully utilize a good configuration management tool. It will serve you well, both in EC2 and in other environments.

I received a feature request for the Cheesecake project last week (thanks Joost Cassee!), so as an experiment I also put the code up on Github. Hopefully the 'social coding' aspect will kick in and more people will be interested in the project. One can dream.

HAProxy is one of the most widely used (if not THE most widely used) software load balancing solution out there. I definitely recommend it if you're looking for a very solid and very fast piece of software for your load balancing needs. I blogged about it before, but here I want to describe ways to monitor it with Nagios (for alerting purposes) and Munin (for resource graphing purposes).

HAProxy Nagios plugin

Near the top of Google searches for 'haproxy nagios plugin' is this message to the haproxy mailing list from Jean-Christophe Toussaint which contains links to a Nagios plugin he wrote for checking HAProxy. This plugin is what I ended up using. It's a Perl script which needs the Nagios::Plugin CPAN module installed. Once you do it, drop check_haproxy.pl in your Nagios libexec directory, then configure it to check the HAProxy stats with a command line similar to this:

/usr/local/nagios/libexec/check_haproxy.pl -u 'http://your.haproxy.server.ip:8000/haproxy;csv' -U hauser -P hapasswd

This assumes that you have HAProxy configured to output its statistics on port 8000. I have these lines in /etc/haproxy/haproxy.cfg:

# status page.
listen stats 0.0.0.0:8000
    mode http
    stats enable
    stats uri /haproxy
    stats realm HAProxy
    stats auth hauser:hapasswd

HAPROXY OK -  cluster1 (Active: 60/60) cluster2 (Active: 169/169) | t=0.131051s;2;10;0; sess_cluster1=0sessions;;;0;20000 sess_cluster2=78sessions;;;0;20000

It shows the active clusters in your HAProxy configuration (e.g. cluster2), together with the number of backends that are UP among the total number of backends for that cluster (e.g 169/169), and also with the number of active sessions for each cluster. If any backend is DOWN, the check status code is critical and you'll get a Nagios alert.

HAProxy Munin plugins

Another Google search, this time for HAProxy and Munin, reveals another message to the haproxy mailing list with links to 4 Munin plugins written by Bart van der Schans:

- haproxy_check_duration: monitor the duration of the health checks per server
- haproxy_errors: monitor the rate of 5xx response headers per backend
- haproxy_sessions: monitors the rate of (tcp) sessions per backend
- haproxy_volume: monitors the bps in and out per backend

I downloaded the plugins, dropped them into /usr/share/munin/plugins, symlink-ed them into /etc/munin/plugins, and added this stanza to /etc/munin/plugin-conf.d/munin-node:

[haproxy*]
user haproxy
env.socket /var/lib/haproxy/stats.socket

However, note that for the plugins to work properly you need 2 things:

1) Configure HAProxy to use a socket that can be queried for stats. I did this by adding these lines to the global section in my haproxy.cfg file:

chroot /var/lib/haproxy
user haproxy
group haproxy
stats socket /var/lib/haproxy/stats.socket uid 1002 gid 1002

(where in my case 1002 is the uid of the haproxy user, and 1002 the gid of the haproxy group)

After doing 'service haproxy reload', you can check that the socket stats work as expected by doing something like this (assuming you have socat installed):

echo 'show stat' | socat unix-connect:/var/lib/haproxy/stats.socket stdio

This should output the HAProxy stats in CSV format.

2) Edit the 4 plugins and change the 'exit 1' statement to 'exit 1' at the top of each plugin:

if ( $ARGV[0] eq "autoconf" ) {
    print_autoconf();
    exit 0;
} elsif ( $ARGV[0] eq "config" ) {
    print_config();
    exit 0;
} elsif ( $ARGV[0] eq "dump" ) {
    dump_stats();
    exit 0;
} else {
    print_values();
    exit 0;
}

If you don't do this, the plugins will exit with code 1 even in the case of success, and this will be interpreted by munin-node as an error. Consequently, you will scratch your head wondering why no haproxy-related links and graphs are showing up on your munin stats page.

Once you do all this, do 'service munin-node reload' on the node running the HAProxy Munin plugins, then check that the plugins are working as expected by cd-ing into the /etc/munin/plugins directory and running each plugin through the 'munin-run' utility. For example:

# munin-run haproxy_sessions
cluster2.value 146761052
cluster1.value 0

That's it. These plugins make it fairly easy for you to get more peace of mind and a better sleep at night. Although it's well known that in #devops we don't sleep that much anyway...

A movie is worth 10,000 words...

Scenario: you have a password-protected site running in EC2 that you want handled via Amazon Elastic Load Balancing. The problem with that is that the HTTP healthchecks from the ELB to the instance hosting your site will fail because they will get a 401 HTTP status code instead of 200. Hence the instance will be marked as 'out of service' by the ELB.

My solution was to serve one static file (I called it 'check.html' containing the text 'it works!') without password protection.

In my case, I have nginx handling both the dynamic app (which is a Django app running on port 8000) and the static files. Here are the relevant excerpts from nginx.conf (check.html is in /usr/local/nginx/static-content):

http {
    include       mime.types;
    default_type  application/octet-stream;

    upstream django {
        server 127.0.0.1:8000;
    }

    server {
        listen       80;

        location / {
            proxy_pass http://django/;
            auth_basic            "Restricted";
            auth_basic_user_file  /usr/local/nginx/conf/.htpasswd;
        }

        location ~* ^.+check\.html$
        {
            root   /usr/local/nginx/static-content;
        }
    }
}

While I'm on the topic of libcloud, I've been trying to pass user data to newly created EC2 instances running Ubuntu. The libcloud EC2 driver has an extra parameter called ex_userdata for the create_node method, and that's what I've been trying to use.

However, the gotcha here is that the value of that argument needs to be the contents of the user data file, and not the path to the file.

So...here's what worked for me:

1) Created a test user data file with following contents:

#!/bin/bash

apt-get update
apt-get install -y munin-node python2.6-dev
hostname coolstuff

2) Used the following script to create the node (I also created a keypair which I passed to create_node as the ex_keypair argument):

#!/usr/bin/env python

import os, sys
from libcloud.types import Provider
from libcloud.providers import get_driver
from libcloud.base import NodeImage, NodeSize, NodeLocation

EC2_ACCESS_ID     = 'MyAccessID'
EC2_SECRET_KEY    = 'MySecretKey'

EC2Driver = get_driver(Provider.EC2)
conn = EC2Driver(EC2_ACCESS_ID, EC2_SECRET_KEY)

keyname = sys.argv[1]
resp = conn.ex_create_keypair(name=keyname)
key_material = resp.get('keyMaterial')
if not key_material:
    sys.exit(1)
private_key = '/root/.ssh/%s.pem' % keyname
f = open(private_key, 'w')
f.write(key_material + '\n')
f.close()
os.chmod(private_key, 0600)

ami = "ami-88f504e1" # Ubuntu 10.04 32-bit
i = NodeImage(id=ami, name="", driver="")
s = NodeSize(id="m1.small", name="", ram=None, disk=None, bandwidth=None, price=None, driver="")
locations = conn.list_locations()
for location in locations:
    if location.availability_zone.name == 'us-east-1b':
        break

userdata_file = "/root/proj/test_libcloud/userdata.sh"
userdata_contents = "\n".join(open(userdata_file).readlines())

node = conn.create_node(name='tst', image=i, size=s, location=location, ex_keyname=keyname, ex_userdata=userdata_contents)
print node.__dict__

3) Waited for the newly created node to get to the Running state, then ssh-ed into the node using the key I created and verified that munin-node and python2.6-dev were installed, and also that the hostname was changed to 'coolstuf'.

# ssh -i ~/.ssh/lc1.pem ubuntu@domU-12-31-38-00-2C-3B.compute-1.internal

ubuntu@coolstuff:~$ dpkg -l | grep munin
ii  munin-common                      1.4.4-1ubuntu1                    network-wide graphing framework (common)
ii  munin-node                        1.4.4-1ubuntu1                    network-wide graphing framework (node)

ubuntu@coolstuff:~$ dpkg -l | grep python2.6-dev
ii  python2.6-dev                     2.6.5-1ubuntu6                    Header files and a static library for Python

ubuntu@coolstuff:~$ hostname
coolstuff

Anyway....hope this will be useful to somebody one day, even if that somebody is myself ;-)

Libcloud 0.4.2 was released yesterday. Among its new features is an important one: SSL certificate validation is now supported when opening a connection to a cloud provider. However, for this to work, you have to jump through a couple of hoops.

1) Python 2.5 doesn't have the ssl module installed (2.6 does) -- so you need to install it from PyPI. The current version for ssl is 1.15.

2) By default, SSL cert validation is disabled in libcloud.

If you open a connection to a provider you get:

/usr/lib/python2.5/site-packages/libcloud/httplib_ssl.py:55:
UserWarning: SSL certificate verification is disabled, this can pose a
security risk. For more information how to enable the SSL certificate
verification, please visit the libcloud documentation.
 warnings.warn(libcloud.security.VERIFY_SSL_DISABLED_MSG)

To get past the warning, you need to enable SSL cert validation and also provide a path to a file containing common CA certificates (if you don't have that file, you can download cacert.pem from http://curl.haxx.se/docs/caextract.html for example). Add these lines before opening a connection:

import libcloud.security
libcloud.security.VERIFY_SSL_CERT = True
libcloud.security.CA_CERTS_PATH.append("/path/to/cacert.pem")

As an aside, the libcloud wiki page on SSL is very helpful and I used it to figure out what to do.
